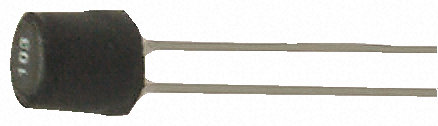

Image is for your reference only,please check specifications for details

22R105C - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC13069117
Category:
Inductor
Package:
Radial
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS 22R105C Inductor, 2200R Series, 1mH, 170mA, 3.63Ω, ± 10%
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 2200R series Radial Lead Inductor with hot dipped tin pin finish. The general purpose range of inductor is suitable for low to medium current applications. The small footprint makes them ideal for high density applications where a chip inductor will not cope with the power requirement. The maximum DC current occurs when either the inductance falls to 90% of its nominal value or when its temperature rise reaches 30°C, whichever is sooner.
Low DC resistance
Miniature size
PCB mounting
MIL-I-23053/5 Class-I sleeving
Fully tinned leads
Compatible with RoHS soldering systems
Backward compatible with Sn/Pb soldering systems
-25 to 70°C Operating free air temperature range

Show

22R105C Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial
Current Rating	170 mA
Capacitance Tolerance	±10 %
Orientation	Vertical
Inductance	1 mH
Self Resonant Frequency	2.1 MHz
Q-Factor	200.0
Resistance	3.63 Ω
Resonant Frequency	2.5 MHz
Inductance Tolerance	±10 %
Test Frequency	1 kHz
DC Resistance (DCR)	≤3.63 Ω
Current Rating (DC)	170 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Resistance (DC Max)	3.63 Ω
	Show
Size-Length	7.7 mm
Size-Height	10.5 mm
Lead Length	35 mm
Weight	1.3 g
Operating Temperature	-25℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
