SN65HVS880PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC30597545
Category:
Voltage Level Translator IC
Package:
HTSSOP-28
Datasheet:
Datasheet 3D Model
Description:

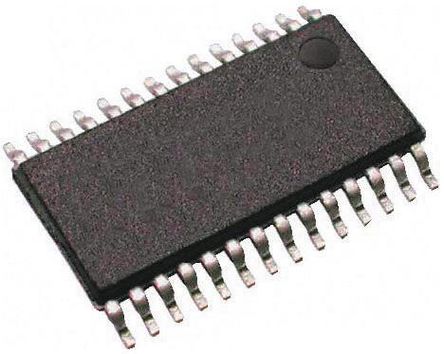

TEXAS INSTRUMENTS SN65HVS880PWP Digital Input Serialiser, 8Input, 1Mbps, 18V to 30V, TSSOP-28
Stock Locations:
Availability:
245 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.93

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN65HVS880PWP is a 8-input 24V Digital-input Serializer for industrial digital inputs. It is for high-channel density digital input modules of PC and PLC based systems in industrial automation. In combination with galvanic isolators the device completes the interface between the 24-V sensor outputs of the field-side and the low-voltage controller inputs at the control-side. Input signals provided by EN60947-5-2 compliant 2- and 3-wire proximity switches are current-limited and then validated by internal debounce filters. The input switching characteristic is in accordance with IEC61131-2 for Type 1, 2 and 3 sensor switches. Upon the application of load and clock signals, input data is latched in parallel into the shift register and afterwards clocked out serially via a subsequent isolator into a serial PLC input. Input status is indicated via 3mA constant current LED outputs. An external precision resistor is required to set the internal reference current.
Output drivers for external status LEDs
Cascadable for more inputs in multiples of eight
Regulated 5V output for external digital isolator
Over-temperature and low-supply voltage indicator
Selectable debounce filters from 0 to 3ms
Adjustable current limits from 0.2 to 5.2mA
Field inputs and supply lines protected to 15kV HBM
Green product and no Sb/Br

Show

SN65HVS880PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	HTSSOP-28
Supply Voltage (DC)	18.0V (min)
Operating Voltage	18.0 V to 30.0 V
Number of Outputs	1 Output
Output Current	5.2 mA
Number of Positions	28 Position
Power Dissipation	2591 W
Data Rate	1.00 Mbps
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2591 mW
Supply Voltage	18V ~ 30V
Supply Voltage (Max)	30 V
Supply Voltage (Min)	18 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
