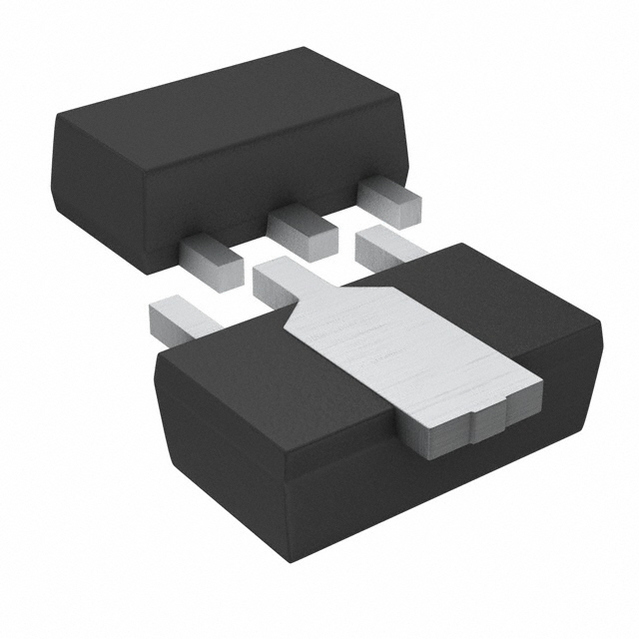

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Medium Power Transistor (32V, 1A)
- Features
- 1) Low VCE(sat) = 0.15V(Typ.)
- (lC / lB = 500mA / 50mA)
- 2) Compliments 2SB1132 / 2SB1237
2SD1664T100Q Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | MPT-3 |
| Voltage Rating (DC) | 32.0 V |
| Current Rating | 1.00 A |
| Polarity | N-Channel, NPN |
| Power Dissipation | 0.5 W |
| Gain Bandwidth Product | 150 MHz |
| Breakdown Voltage (Collector to Emitter) | 32 V |
| Continuous Collector Current | 1A |
| hFE Min | 120 @100mA, 3V |
| hFE Max | 390 |
| Input Power (Max) | 2 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Power Dissipation (Max) | 500 mW |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 2.5 mm |
| Size-Height | 1.5 mm |
| Material | Silicon |
| Operating Temperature | 150℃ (TJ) |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
