Description
- DC-DC Converter, Relay Drive and Motor Drive Applications
- • 4-V gate drive
- • Low drain-source ON resistance: RDS (ON)= 0.15 Ω(typ.)
- • High forward transfer admittance: |Yfs| = 7.7 S (typ.)
- • Low leakage current: IDSS= −100 μA (max) (VDS= −100 V)
- • Enhancement mode: Vth = −0.8 to −2.0 V (VDS= −10 V, ID= −1 mA)
2SJ412 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |

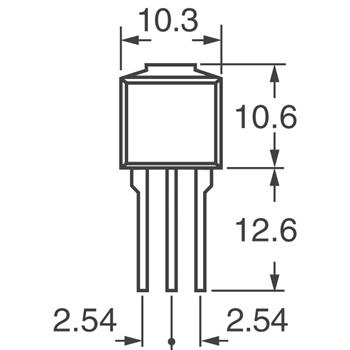

| Case/Package | TO-220-3 |
| Voltage Rating (DC) | -100 V |
| Current Rating | -16.0 A |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 210 mΩ |
| Polarity | P-CH |
| Drain to Source Voltage (Vds) | 100 V |
| Breakdown Voltage (Drain to Source) | 100 V |
| Continuous Drain Current (Ids) | 16.0 A |
| Rise Time | 18.0 ns |
| Input Capacitance (Ciss) | 1100pF @10V(Vds) |
| Input Power (Max) | 60 W |
| Show | |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
