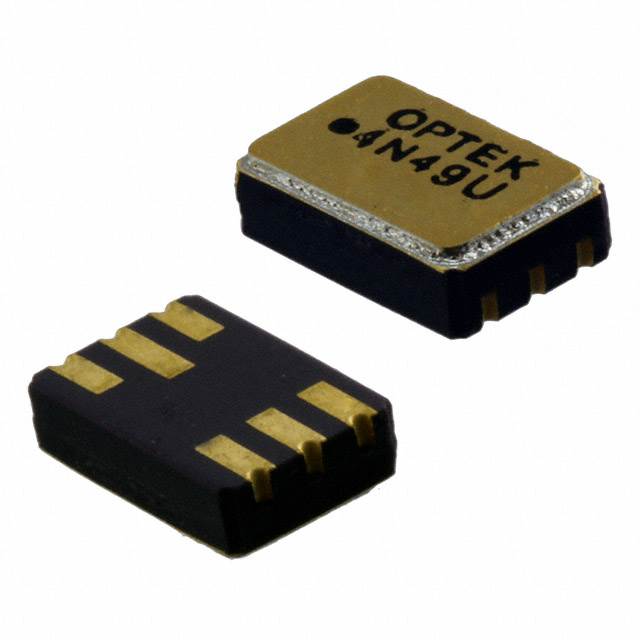

Image is for your reference only,please check specifications for details
- 4N49UTX - TT Electronics/Optek Technology
-
Manufacturer:TT Electronics/Optek Technology
-
ManyChip's Part#:MC137549386
-
Category:Optocoupler, Optoisolator
-
Package:SMD-6
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler DC-IN 1CH Transistor DC-OUT 6Pin LCC
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description:
- Each isolator in this series has a 890 nm (for the 4N2_U series) and 935nm (for the 4N4_ series) wavelength infrared emitting diode and a NPN silicon phototransistor,which are mounted in a hermetically sealed Surface Mount, 6 Pin package. Devices are designed for military and/or harsh environments. Burn-in condition is VCE= 10V, IF= 40mA, PD= 275 mW, TA= 25° C.
- The 4N22U, 4N23U and 4N24U (TX, TXV) devices are processed to MIL-PRF-19500/486. The 4N47U, 4N48U and 4N48U (TX, TXV) devices are processed to MIL-PRF-19500/548.
- Features:
- • Surface Mount (SM), Leadless Chip Carrier (LCC)
- • 1 kV electrical isolation
- • Base contact provided for conventional transistor biasing
- • TX and TXV devices processed to MIL-PRF-19500
- Applications:
- • Military equipment
- • High-Reliability environments
- • High voltage isolation between input and output
- • Electrical isolation in dirty environments
- • Industrial equipment
- • Medical equipment
- • Office equipment
4N49UTX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SMD-6 |
| Rise/Fall Time | 20 µs |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.5V (Max) |
| Power Dissipation | 300 mW |
| Isolation Voltage | 1000 VDC |
| Forward Current | 40 mA |
| Output Voltage (Max) | 45 V |
| Maximum Forward Voltage (Max) | 1.7 V |
| Forward Current (Max) | 50 mA |
| Fall Time (Max) | 20 µs |
| Fall Time (Max) | 20 µs |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 300 mW |
| Show | |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
