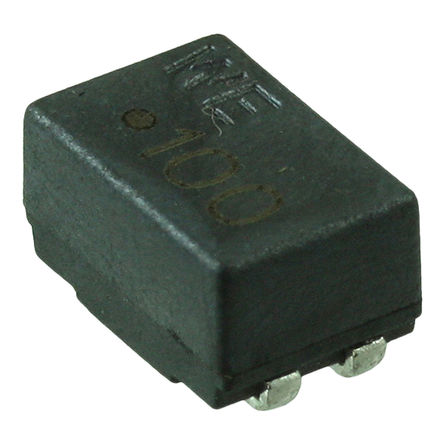

Image is for your reference only,please check specifications for details

744226S - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC27474126
Category:
Inductor Choke
Package:
60286-3
Datasheet:
Datasheet 3D Model
Description:
Filter, Line, Surface Mount, 10µH, WE-SL2 Series, 920Ω, 1.6A, 9.2mm x 6mm x 5mm
Stock Locations:
Availability:
235 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.46

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 744226S is a 1.6A SMD common mode Line Filter with NiZn and MnZn ring core, reflow solder profile and sectional winding style. The WE-SL2 series filter is suitable for suppression of common mode noise.
-40 to 125°C Operating temperature range

Show

744226S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	60286-3
Voltage Rating (DC)	80 V
Current Rating	1.6 A
Inductance	10 µH
Test Frequency	1 kHz
DC Resistance (DCR)	≤80 mΩ
Current Rating (Max)	1.6 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	80 V
Resistance (DC Max)	80 mΩ
	Show
Size-Length	9.2 mm
Size-Width	6 mm
Size-Height	5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
