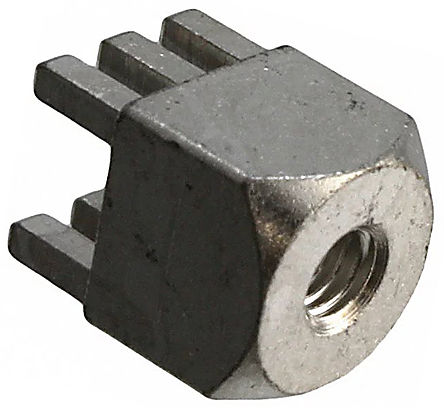

Image is for your reference only,please check specifications for details

7461057 - Wurth Electronics
Manufacturer:
Wurth Electronics
ManyChip's Part#:
MC7173083
Category:
Wire to Board Connector
Datasheet:
Datasheet 3D Model
Description:
Rectangular Power Connector, 6Contact(s), Male, Press Fit Terminal, ROHS AND REACH COMPLIANT
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 7461057 is a 2-row Bush with 6-way pin-plate, M3 threaded hole, CuZn39Pb3 construction, 1.60mm drill hole diameter, 1.45 ±0.05mm final hole diameter HAL. 5 to 10µm Sn on 2 to 4µm Cu surface coating. Press-Fit execution.

Show

7461057 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Number of Contacts	6 Contact
Contact Plating	Tin
Current Rating	100 A
Number of Rows	2 Row
Number of Positions	6 Position
Operating Temperature (Max)	135 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	9.5 mm
Contact Material	Copper
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
