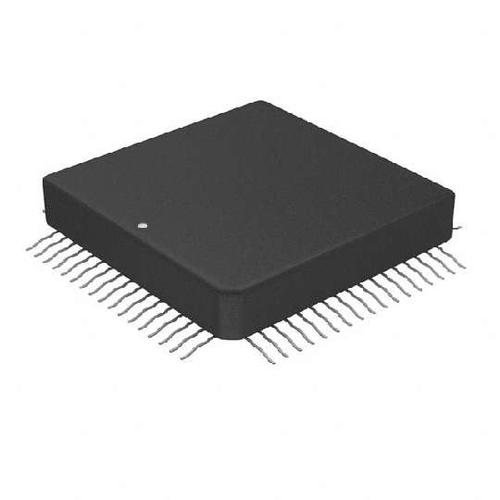

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD10242 is a complete dual signal chain solution including on-board amplifiers, references, ADCs, and output buffering providing unsurpassed total system performance. Each channel is laser trimmed for gain and offset matching and provides channel-to- channel crosstalk performance better than 80 dB. The AD10242 utilizes two each of the AD9631, OP279, and the AD9042 in a custom MCM to gain space, performance, and cost advantages over solutions previously available.
- The AD10242 operates with ±5.0 V for the analog signal conditioning with a separate +5.0 V supply for the analog-to-digital conversion. Each channel is completely independent allowing operation with independent encode or analog inputs. The AD10242 also offers the user a choice of analog input signal ranges to minimize additional signal conditioning required for multiple functions within a single system. The heart of the AD10242 is the AD9042 which is designed specifically for applications requiring wide dynamic range.
- The AD10242 is manufactured by Analog Devices on our MIL-PRF-38534 MCM line and is completely qualified. Units are packaged in a custom cofired ceramic 68-lead gull wing package and specified for operation from –55°C to +125°C. Contact the factory for additional custom options including those which allow the user to ac couple the ADC directly, by-passing the front end amplifier section. Also see the AD9042 data sheet for additional details on ADC performance.
- **Applications**
- Radar Processing
- Communications Receivers
- FLIR Processing
- Secure Communications
- Any I/Q Signal Processing Application
- ### Features and Benefits
- 2 Matched ADCs with Input Signal Conditioning
- Selectable Bipolar Input Voltage Range
- (±0.5 V, ±1.0 V, ±2.0 V)
- Full MIL-STD-883B Compliant
- 80 dB Spurious-Free Dynamic Range
- Trimmed Channel-Channel Matching
AD10242TZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 68 Pin |
| Case/Package | CLCC-68 |
| Number of Circuits | 2 Circuit |
| Number of Bits | 12 Bit |
| Power Dissipation | 1750 mW |
| Power Consumption | 1750 mW |
| Resolution (Bits) | 12.0 Bit |
| Input Capacitance | 4.00 pF |
| Input Impedance | 400 Ω |
| Number of ADCs | 2 ADC |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2000 mW |
| Number of Input Channels | 6 Channel |
| Show | |
| Size-Length | 24.13 mm |
| Size-Width | 24.13 mm |
| Size-Height | 4.45 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Rail, Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | Yes |
| ECCN Code | 3A001A2C |
