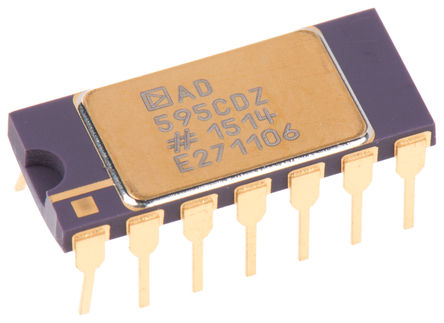

Image is for your reference only,please check specifications for details

AD595CDZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC2016604
Category:
Temperature Sensor
Package:
TO-116
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD595CDZ Temperature Sensor IC, Voltage, ± 1℃, -55℃, +125℃, TO-116, 14Pins
Stock Locations:
Availability:
243 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 133.65

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD595 series Instrumentation Amplifier with thermocouple cold junction compensator on a monolithic chip. It combines an ice point reference with a pre-calibrated amplifier to produce a high level (10mV/°C) output directly from a thermocouple signal. The AD595 includes a thermocouple failure alarm that indicates if one or both thermocouple leads become open. The alarm output has a flexible format which includes TTL drive capability. The AD595 is laser trimmed for type K (chromel-alumel) inputs. The temperature transducer voltages and gain control resistors are available at the package pins so that the circuit can be recalibrated for the thermocouple types by the addition of two or three resistors. These terminals also allow more precise calibration for both thermocouple and thermometer applications. It can be used to amplify its compensation voltage directly, thereby converting it to a stand-alone Celsius transducer with a low impedance voltage output.
Pretrimmed for Type K
Can be used with type T thermocouple inputs
10mV/°C Low impedance voltage output
Built-in ice point compensation
<1mW Typical low power
Laser wafer trimmed to 1°C Calibration accuracy
Self-contained Celsius thermometer operation
High impedance differential input
Differential input rejects common-mode noise voltage on the thermocouple leads
Operation at remote application sites is facilitated by low quiescent current

Show

AD595CDZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	TO-116
Supply Voltage (DC)	5.00V (min)
Supply Current	300 µA
Number of Positions	14 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±1℃ (Max)
Supply Voltage	5V ~ 15V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	5 V
	Show
Size-Length	17.78 mm
Size-Width	7.37 mm
Size-Height	2.41 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
