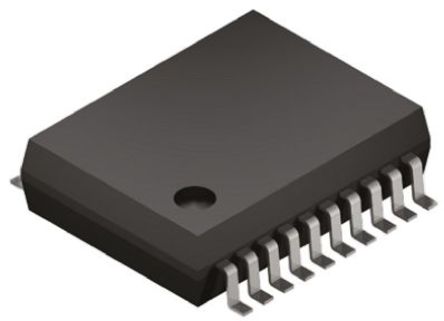

AD7945BRSZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1552673
Category:
Digital to Analog, DAC IC
Package:
SSOP-20
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD7945BRSZ Digital to Analog Converter, 12Bit, 4.5V to 5.5V, SSOP, 20Pins
Stock Locations:
Availability:
239 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.23

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The AD7943, AD7945 and AD7948 are fast 12-bit multiplying DACs that operate from a single +5 V supply (Normal Mode) and a single +3.3 V to +5 V supply (Biased Mode). The AD7943 has a serial interface, the AD7945 has a 12-bit parallel interface, and the AD7948 has an 8-bit byte interface. They will replace the industry-standard AD7543, AD7545 and AD7548 in many applications, and they offer superior speed and power consumption performance.
The AD7943 is available in 16-pin DIP, 16-pin SOP (Small Outline Package) and 20-pin SSOP (Shrink Small Outline Package).
The AD7945 is available in 20-pin DIP, 20-pin SOP and 20-pin SSOP.
The AD7948 is available in 20-pin DIP, 20-pin SOP and 20-pin SSOP.
### Features and Benefits
12-Bit Multiplying DACs
0.5 LSBs INL and DNL
Fast Interface:
40 ns Strobe Pulsewidth (AD7943)
40 ns Write Pulsewidth (AD7945, A7948)
Guaranteed Specifications wth +3.3 V/+5 Supply
Low Power: 5 µW typ
Low Glitch: 60 nV-s with Amplifier Connected
Fast Settling: 600 ns to 0.01% with AD843

Show

AD7945BRSZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SSOP-20
Supply Current	5.00 µA
Number of Positions	20 Position
Number of Bits	12 Bit
Power Dissipation	875 mW
Resolution (Bits)	12.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	875 mW
Number of DACs	1 DAC
Supply Voltage	4.5V ~ 5.5V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
