Description
- These Zener Diode Voltage Regulators are packaged in the SOD-523 surface mount package. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables and high density PC boards.
- Features
- ---
- |
- Standard Zener Breakdown Voltage Range: 2.4V to 75V
- Steady State Power Rating of 500mW
- Small Body Outline Dimensions: 0.047in x 0.032in (1.20mm x 0.80mm)
- Low Body Height: 0.028in (0.7mm)
- ESD Rating of Class 3 (>16kV) Human Body Model
- Epoxy Meets UL94, VO
- Cathode Indicated by Polarity Band
- Lead Finish: 100% Matte Sn (Tin)
- Qualified Maximum Reflow Temperature: 260C
- Device Meets MSL 1 Requirements
- Pb-Free Packages are Available
- AEC-Q101 Qualified and PPAP Capable
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements

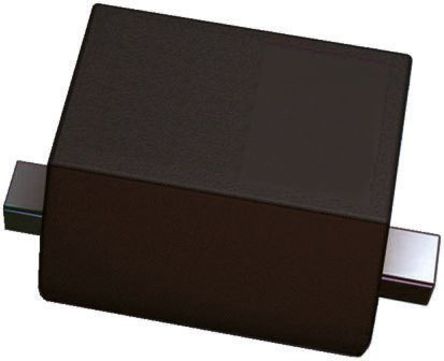

MM5Z33VT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SOD-523-2 |
| Voltage Rating (DC) | 33.0 V |
| Capacitance Tolerance | ±6 % |
| Power Rating | 100 mW |
| Forward Voltage | 900mV @10A |
| Power Dissipation | 200 mW |
| Test Current | 2 mA |
| Zener Voltage | 33 V |
| Input Power (Max) | 500 mW |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 500 mW |
| Show | |
| Size-Length | 1.3 mm |
| Size-Width | 0.9 mm |
| Size-Height | 0.6 mm |
| Material | Plastic |
| Operating Temperature | -65℃ ~ 150℃ |
| Temperature Coefficient | 30.4 mV/K |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
