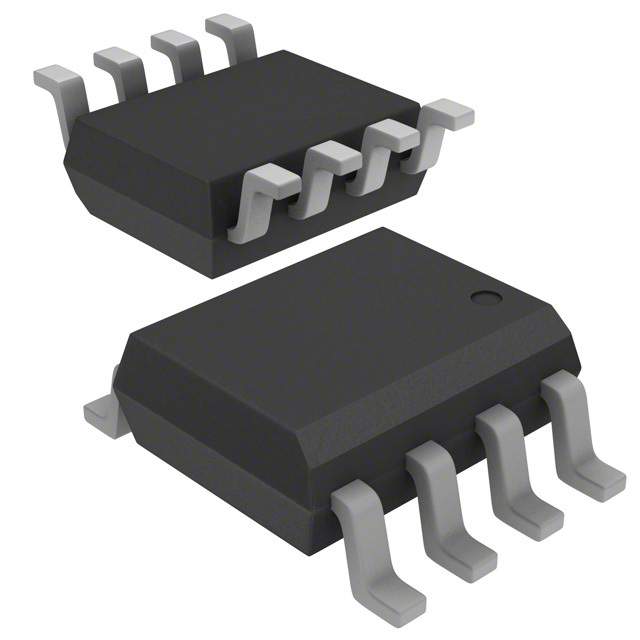

- AD8009AR - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC86223240
-
Category:Amplifier, Buffer IC
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:OP Amp Single Current Fdbk ±6V/12V 8Pin SOIC OP Amp Single Current Fdbk ±6V/12V 8Pin SOIC
-
Stock Locations:
-
Availability:679 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.09
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- PRODUCT DESCRIPTION
- The AD8009 is an ultrahigh speed current feedback amplifier with a phenomenal 5,500 V/µs slew rate that results in a rise time of 545 ps, making it ideal as a pulse amplifier.
- FEATURES
- Ultrahigh Speed
- 5,500 V/s Slew Rate, 4 V Step, G = +2
- 545 ps Rise Time, 2 V Step, G = +2
- Large Signal Bandwidth
- 440 MHz, G = +2
- 320 MHz, G = +10
- Small Signal Bandwidth (–3 dB)
- 1 GHz, G = +1
- 700 MHz, G = +2
- Settling Time 10 ns to 0.1%, 2 V Step, G = +2
- Low Distortion Over Wide Bandwidth
- SFDR
- –44 dBc @ 150 MHz, G = +2, VO= 2 V p-p
- –41 dBc @ 150 MHz, G = +10, VO= 2 V p-p
- 3rd Order Intercept (3IP)
- 26 dBm @ 70 MHz, G = +10
- 18 dBm @ 150 MHz, G = +10
- Good Video Specifications
- Gain Flatness 0.1 dB to 75 MHz
- 0.01% Differential Gain Error, RL= 150
- 0.01Differential Phase Error, RL= 150
- High Output Drive
- 175 mA Output Load Drive
- 10 dBm with –38 dBc SFDR @ 70 MHz, G = +10
- Supply Operation
- 5 V Voltage Supply
- 14 mA (Typ) Supply Current
- APPLICATIONS
- Pulse Amplifier
- IF/RF Gain Stage/Amplifiers
- High Resolution Video Graphics
- High Speed Instrumentations
- CCD Imaging Amplifier
AD8009AR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Current | 16 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 750 mW |
| Common Mode Rejection Ratio | 52 dB |
| Input Capacitance | 2.60 pF |
| Bandwidth | 1.00 GHz |
| Slew Rate | 5.50 kV/μs |
| Input Impedance | 110 kΩ |
| Input Offset Voltage | 2 mV |
| Input Bias Current | 50 µA |
| 3dB Bandwidth | 1 GHz |
| Power Dissipation (Max) | 750 mW |
| Minimum CMRR Range | 50 dB |
| Supply Voltage (Max) | 12 V |
| Supply Voltage (Min) | 5 V |
| Show | |
| Size-Width | 4 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | End of Life |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
