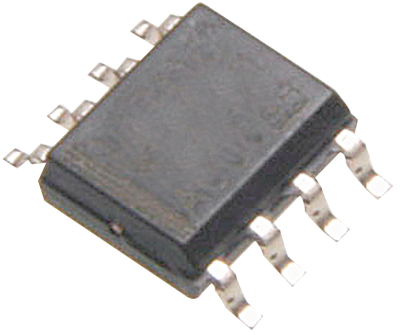

Image is for your reference only,please check specifications for details

AD8042ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC486757
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8042ARZ Operational Amplifier, Dual, 2 Amplifier, 160MHz, 200V/µs, 3V to 12V, SOIC, 8Pins
Stock Locations:
Availability:
266 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.09

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8042ARZ is a Dual 160MHz Rail to Rail Amplifier with disable designed to operate on +3, +5 or ±5V supplies. It has true single-supply capability with an input voltage range extending 200mV below the negative rail and within 1V of the positive rail. The output voltage swing extends to within 30mV of each rail, providing the maximum output dynamic range. Additionally, it features gain flatness of 0.1dB to 14MHz while offering differential gain and phase error of 0.04% and 0.06° on a single 5V supply. This makes it ideal for professional video electronics such as cameras, video switchers or any high speed portable equipment. The AD8042 offers a low power supply current of 12mA maximum and can run on a single 3.3V power supply. These features are ideally suited for portable and battery powered applications where size and power are critical.
Output swings to within 30mV of either rail
Input voltage range extends 200mV below ground
No phase reversal with inputs 0.5V beyond supplies
Low power of 5.2mA per amplifier
High speed and fast settling on 5V
0.02% Differential gain error
0.04° Differential phase error
Low distortion
Good video specifications (RL = 150R, G = +2)
ESD sensitive device, take proper precaution while handling the device.

Show

AD8042ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Output Current	50.0 mA
Supply Current	6 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	900 mW
Common Mode Rejection Ratio	74 dB
Input Capacitance	1.50 pF
Bandwidth	160 MHz
Slew Rate	200 V/μs
Gain Bandwidth Product	100 MHz
Input Impedance	300 kΩ
Input Offset Voltage	3 mV
Input Bias Current	1.2 µA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	170 MHz
Gain Bandwidth	68 dB
Power Dissipation (Max)	900 mW
Minimum CMRR Range	68 dB
Supply Voltage	3V ~ 12V
Supply Voltage (Max)	12 V
Supply Voltage (Min)	3 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
