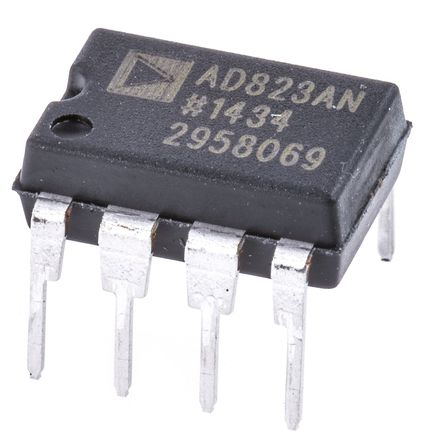

Image is for your reference only,please check specifications for details

AD823ANZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC414859
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD823ANZ Operational Amplifier, Dual, 2 Amplifier, 16MHz, 22V/µs, 3V to 36V, DIP, 8Pins
Stock Locations:
Availability:
258 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.59

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD823ANZ is a Dual 16MHz Rail-to-rail FET Input Amplifier that can operate from a single supply of 3 to 36V or from dual supplies of ±1.5 to ±18V. It has true single-supply capability with an input voltage range extending below ground in single-supply mode. Output voltage swing extends to within 50mV of each rail for IOUT
Output swings rail-to-rail
Input voltage range extends below ground
Single-supply capability from 3 to 36V
500pF Capacitive load drive
Excellent AC performance on 2.6mA/amplifier
350ns Settling time to 0.01% (2V step)
Good DC performance
800µV Maximum input offset voltage
2µV/°C Offset voltage drift
25pA Maximum input bias current
Low distortion
16nV/√Hz Noise at 10kHz
No phase inversion with inputs to the supply rails
ESD sensitive device, take proper precaution while handling the device.

Show

AD823ANZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Output Current	16mA @5V
Supply Current	7 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	1.3 W
Common Mode Rejection Ratio	60 dB
Bandwidth	16 MHz
Slew Rate	25.0 V/μs
Gain Bandwidth Product	10 MHz
Input Offset Voltage	700 µV
Input Bias Current	5 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	16 MHz
Gain Bandwidth	15 MHz
Power Dissipation (Max)	1300 mW
Minimum CMRR Range	60 dB
Supply Voltage	3V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	3 V
	Show
Size-Length	9.27 mm
Size-Width	7.24 mm
Size-Height	3.43 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
