AD9102BCPZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC1808742
Category:
Digital to Analog, DAC IC
Package:
LFCSP-32
Datasheet:
Datasheet 3D Model
Description:
Digital to Analogue Converter, 14Bit, 180MSPS, Differential, Single Ended, 1.8V to 3.3V, LFCSP
Stock Locations:
Availability:
215 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 20.58

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

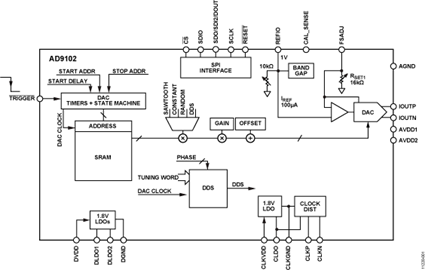

The AD9102BCPZ is a low power 14-bit Digital-to-analog Converter (DAC) integrating on-chip pattern memory for complex waveform generation with a direct digital synthesizer (DDS). The DDS is a 14-bit output, up to 180MSPS master clock sine wave generator with a 24-bit tuning word allowing 10.8Hz/LSB frequency resolution. SRAM data can include directly generated stored waveforms, amplitude modulation patterns applied to DDS outputs or DDS frequency tuning words. An internal pattern control state machine lets the user program the pattern period for the DAC as well the start delay within the pattern period for the signal output on the DAC. A SPI interface is used to configure the digital waveform generator and load patterns into the SRAM. A gain adjustment factor and an offset adjustment are applied to the digital signal on their way into the DAC. The AD9102 offers exceptional AC and DC performance and supports DAC sampling rates of up to 180MSPS.
On-chip 4096 x 14-bit pattern memory
SFDR to Nyquist
High integration
Low power

Show

AD9102BCPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	LFCSP-32
Number of Outputs	1 Output
Supply Current	7.67 mA
Number of Positions	32 Position
Number of Bits	14 Bit
Power Dissipation	96.5 mW
Sample Rate	180 Msps
Resolution (Bits)	14.0 Bit
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	96.54 mW
Number of DACs	1 DAC
Supply Voltage	1.8V ~ 3.3V
Supply Voltage (Max)	3.3 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	5.1 mm
Size-Width	5.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2013/06/20
ECCN Code	EAR99
