Description
- Сведения о продукте

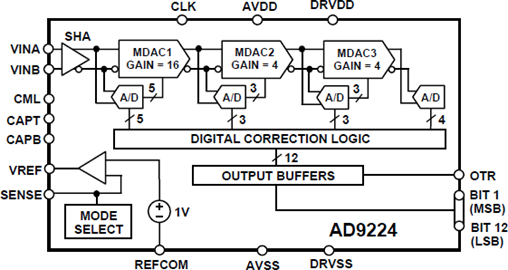

- AD9224 — это монолитный 12-битный аналого-цифровой преобразователь с частотой дискретизации 40 МВыб/с, работающий от одного источника питания, со встроенным высокопроизводительным усилителем выборки и хранения и источником опорного напряжения. AD9224 использует многоступенчатую дифференциальную конвейерную архитектуру с логикой коррекции ошибок на выходе, что обеспечивает 12-битную точность при частоте дискретизации 40 МВыб/с и гарантирует отсутствие пропущенных кодов во всем диапазоне рабочих температур.
- ### Особенности и преимущества
- Низкое энергопотребление: 415 мВт
- Однополярное питание +5 В
- Гарантированное отсутствие пропущенных кодов
- DNL: ±0,33 МЗР
- Встроенный усилитель выборки и хранения и источник опорного напряжения
- ОСШ: 68,3 дБ
- SFDR: 81 дБ
- Индикатор выхода за диапазон
- Выходные данные в прямом двоичном коде
- Корпус SSOP с 28 выводами
- Совместимость с логикой 3 В
AD9224 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Show | |
| Product Lifecycle Status | Active |
