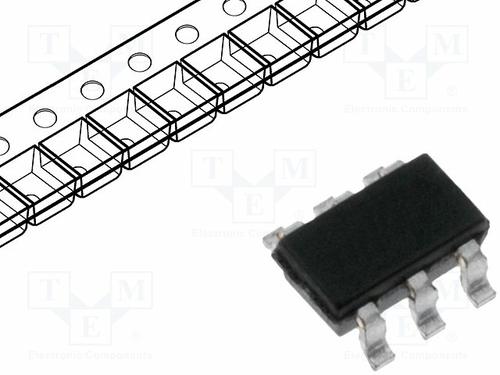

ADC121S021CIMF - TI
Manufacturer:
TI
ManyChip's Part#:
MC12675037
Category:
Analog to Digital, ADC IC
Package:
SOT-23-6
Datasheet:
Datasheet 3D Model
Description:
Analogue to Digital Converter, 12Bit, 200KSPS, Single, 2.7V, 5.25V, SOT-23
Stock Locations:
Availability:
2,963 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.36

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ADC121S021CIMF is a 12-bit CMOS successive-approximation Analogue-to-digital Converter with a high-speed serial interface. Unlike the conventional practice of specifying performance at a single sample rate only, the ADC121S021 is fully specified over a sample rate range of 50 to 200kSPS. The low-power single channel converter is based upon successive-approximation register architecture with an internal track-and-hold circuit. The output serial data is straight binary and is compatible with several standards, such as SPI™, QSPI™, MICROWIRE and many common DSP serial interfaces. The ADC operates with a single supply that can range from +2.7 to +5.25V.
Specified over a range of sample rates
Variable power management
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

ADC121S021CIMF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Supply Voltage (DC)	2.70V (min)
Operating Voltage	2.7V ~ 5.25V
Supply Current	1.50 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Number of Bits	12 Bit
Sample Rate	200 ksps
Power Consumption	1.50 mW
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	1 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	2.7 V
Input Voltage	5.25 V
	Show
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
