Description

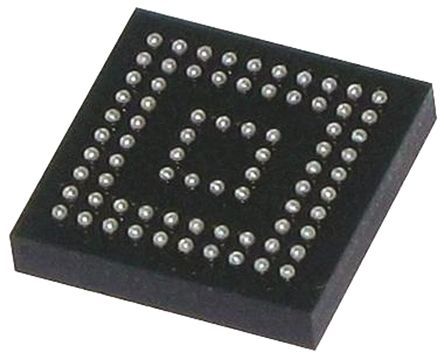

The ADDI7004BBBCZ is a quad-channel, HD Image Signal Processor for high speed imaging applications. Each channel is specified at pixel rates of up to 72MHz and consists of a complete analog front end (AFE) with ADC conversion. The Precision Timing™ core allows adjustment of the correlated double sampler (CDS) and sample-and-hold amplifier (SHA) clocks with 220ps resolution at 72MHz operation. The ADDI7004 also contains a reduced range low voltage differential signalling (LVDS) interface for the dual-channel data outputs. Each analog front end includes black level clamping, a CDS/SHA, a VGA and a 72MHz, 14-bit analog-to-digital converter(ADC). Operation is programmed using a 3-wire serial interface.
Support for CCD and CMOS image sensors
4 AFE channels
Serial data output with reduced range LVDS outputs
Differential analog inputs
6 to 42dB, 10-bit variable gain amplifier (VGA)
14-bit, 72MHz ADC
Black level clamp with variable level control
Precision Timing core with 220ps resolution at 72MHz

Show

ADDI7004BBBCZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	76 Pin
Case/Package	BGA-76
Supply Voltage (DC)	1.80V (max)
Number of Channels	1 Channel
Number of Positions	76 Position
Power Dissipation	400 mW
Resolution (Bits)	14.0 Bit
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	1.8 V
Supply Voltage (Min)	1.6 V
	Show
Size-Length	6 mm
Size-Width	6 mm
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
