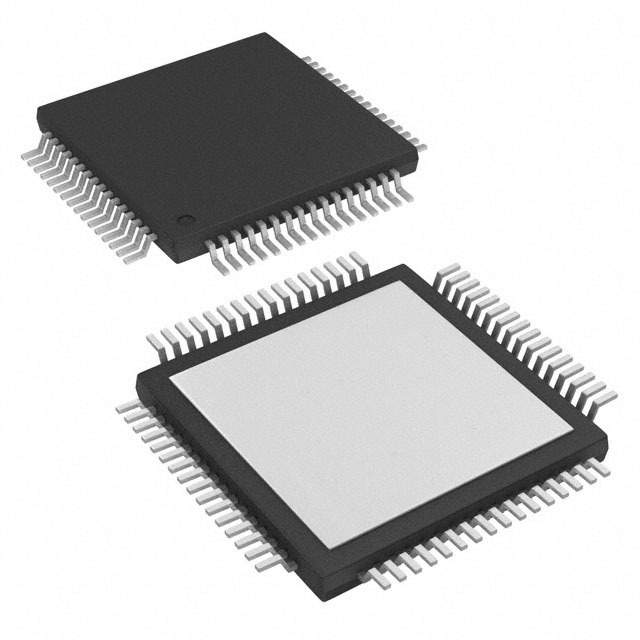

Image is for your reference only,please check specifications for details

ADS1278IPAPR - TI
Manufacturer:
TI
ManyChip's Part#:
MC4399364
Category:
Analog to Digital, ADC IC
Package:
TQFP-64
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS ADS1278IPAPR Analog to Digital Converter, 24Bit, 144KSPS, Single, 4.75V, 5.25V, QFP
Stock Locations:
Availability:
1,070 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 43.67

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Based on the single-channel ADS1271, the ADS1274 (quad) and ADS1278 (octal) are 24-bit, delta-sigma (ΔΣ) analog-to-digital converters (ADCs) with data rates up to 144k samples per second (SPS), allowing simultaneous sampling of four or eight channels. The devices are offered in identical packages, permitting drop-in expandability.
Traditionally, industrial delta-sigma ADCs offering good drift performance use digital filters with large passband droop. As a result, they have limited signal bandwidth and are mostly suited for dc measurements. High-resolution ADCs in audio applications offer larger usable bandwidths, but the offset and drift specifications are significantly weaker than respective industrial counterparts. The ADS1274 and ADS1278 combine these types of converters, allowing high-precision industrial measurement with excellent dc and ac specifications.
The high-order, chopper-stabilized modulator achieves very low drift with low in-band noise. The onboard decimation filter suppresses modulator and signal out-of-band noise. These ADCs provide a usable signal bandwidth up to 90% of the Nyquist rate with less than 0.005dB of ripple.
Four operating modes allow for optimization of speed, resolution, and power. All operations are controlled directly by pins; there are no registers to program. The devices are fully specified over the extended industrial range (–40°C to +105°C) and are available in an HTQFP-64 PowerPAD™ package.

Show

ADS1278IPAPR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	TQFP-64
Supply Voltage (DC)	4.75V (min)
Supply Current	97.0 mA
Number of Circuits	8 Circuit
Number of Channels	8 Channel
Number of Bits	24 Bit
Power Dissipation	530 mW
Sample Rate	144 ksps
Power Consumption	530 mW
Number of ADCs	8 ADC
Number of Inputs	8 Input
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	785 mW
Number of Input Channels	8 Channel
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
