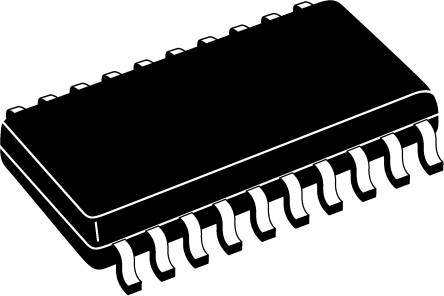

Image is for your reference only,please check specifications for details

AMIS42700WCGA4RH - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC29266600
Category:
CAN IC, Controller Area Network
Package:
SOIC-20
Datasheet:
Datasheet 3D Model
Description:
AMIS42700WCGA4RH, CAN Transceiver 1Mbit/s 2Channel ISO 11898-2, 20Pin SOIC
Stock Locations:
Availability:
293 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.61

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**CAN Controllers, ON Semiconductor**
A range of Controller Area Network (CAN) protocol controllers and transceivers from ON Semiconductor. The transceivers provide differential transmit capability to the bus and differential receive capability to the CAN controller.

Show

AMIS42700WCGA4RH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SOIC-20
Supply Voltage (DC)	4.75V (min)
Halogen Free Status	Halogen Free
Supply Current	137.5 mA
Number of Positions	20 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	12.95 mm
Size-Width	2.54 mm
Size-Height	7.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
