Description
- Product Details

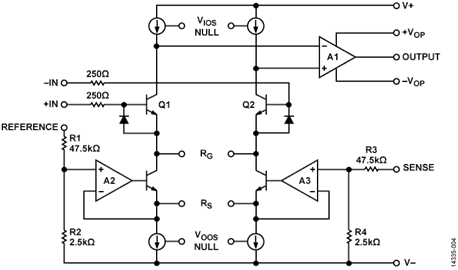

- The AMP01 is a monolithic instrumentation amplifier designed for high-precision data acquisition and instrumentation applications. The design combines the conventional features of an instrumentation amplifier with a high current output stage. The output remains stable with high capacitance loads (1 μF), a unique ability for an instrumentation amplifier. Consequently, the AMP01 can amplify low level signals for transmission through long cables without requiring an output buffer. The output stage can be configured as a voltage or current generator.
- Input offset voltage is very low (20 μV), which generally eliminates the external null potentiometer. Temperature changes have minimal effect on offset; TCVIOS is typically 0.15 μV/°C. Excellent low frequency noise performance is achieved with a minimal compromise on input protection. The bias current is very low, less than 10 nA over the military temperature range. High common-mode rejection of 130 dB, 16-bit linearity at a gain of 1000, and 50 mA peak output current are achievable simultaneously. This combination takes the instrumentation amplifier one step further towards the ideal amplifier.
- AC performance complements the superb dc specifications. The AMP01 slews at 4.5 V/μs into capacitive loads of up to 15 nF, settles in 50 μs to 0.01% at a gain of 1000, and boasts a healthy 26 MHz gain bandwidth product. These features make the AMP01 ideal for high speed data acquisition systems.
- The gain is set by the ratio of two external resistors over a range of 0.1 to 10,000. A very low gain temperature coefficient of 10 ppm/°C is achievable over the whole gain range. Output voltage swing is guaranteed with three load resistances: 50 Ω, 500 Ω, and 2 kΩ. Loaded with 500 Ω, the output delivers ±13.0 V minimum. A thermal shutdown circuit prevents destruction of the output transistors during overload conditions.
- The AMP01 can also be configured as a high performance operational amplifier. In many applications, the AMP01 can be used in place of op amp/power buffer combinations.
- ### Features and Benefits
- Low offset voltage: 50 μV maximum
- Very low offset voltage drift: 0.3 μV/°C maximum
- Low noise: 0.12 μV p-p (0.1 Hz to 10 Hz)
- Excellent output drive: ±10 V at ±50 mA
- Capacitive load stability: up to 1 μF
- Gain range: 0.1 to 10,000
- Excellent linearity: 16-bit at G = 1000
- High CMR: 125 dB minimum (G = 1000)
- Low bias current: 4 nA maximum
- Can be configured as a precision op amp
- Output-stage thermal shutdown
- Available in die form
AMP01AX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 18 Pin |
| Case/Package | CDIP-18 |
| Supply Current | 3 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Common Mode Rejection Ratio | 85 dB |
| Slew Rate | 4.50 V/μs |
| Gain Bandwidth Product | 570 kHz |
| Input Offset Voltage | 20 µV |
| Input Bias Current | 1 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| 3dB Bandwidth | 570 kHz |
| Minimum CMRR Range | 80 dB |
| Supply Voltage (Max) | 30V ~ 50V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 24.38 mm |
| Size-Width | 7.87 mm |
| Size-Height | 4.93 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| HK STC License | NLR |
