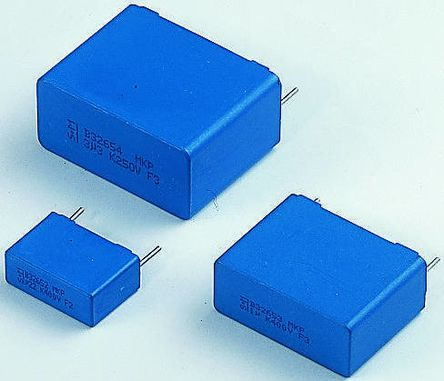

B32656S7224K564 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC81595266
Category:
Film Capacitor
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Cap Film 0.22uF 1250V PP 10% (42 X 14 X 25mm) Screw Mount Plastic Can 0.01Ω 100℃ Bulk
Stock Locations:
Availability:
327 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.56

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The B32656S series metallised polypropylene Film Capacitor with polypropylene (PP) dielectric, plastic case and epoxy resin sealing. It is suitable for IGBT and snubber (wound) applications.
Wound capacitor technology with internal series connection
High pulse strength and high contact reliability
Very low inductance
Tinned copper or brass strap terminals
Do not exceed the upper category temperature (UCT). Do not apply any mechanical stress to the capacitor terminals. Avoid any compressive, tensile or flexural stress.

Show

B32656S7224K564 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Radial
Number of Pins	2 Pin
Case/Package	-
Pin Pitch	37.5 mm
Voltage Rating (DC)	1250 V
Voltage Rating (AC)	500 V
Capacitance	0.22 µF
Equivalent Series Resistance (ESR)	11.5 mΩ
Capacitance Tolerance	±5 %
Flammability Rating	UL 94 V-0
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	1.25 kV
	Show
Size-Length	42 mm
Size-Width	14 mm
Size-Height	25 mm
Dielectric Material	Polypropylene
Operating Temperature	-55℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
