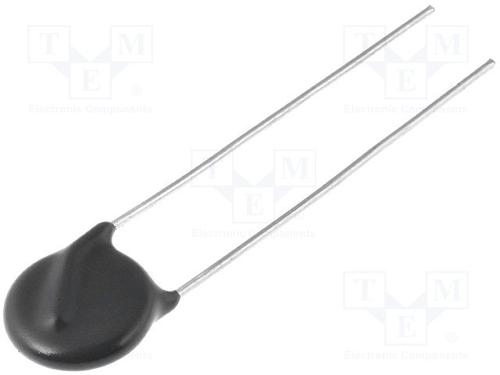

Image is for your reference only,please check specifications for details

B72210S0400K101 - Epcos
Manufacturer:
Epcos
ManyChip's Part#:
MC13729140
Category:
Varistor
Datasheet:
Datasheet 3D Model
Description:
EPCOS B72210S0400K101 TVS Varistor, 40V, 56V, StandarD Series, 135V, Disc 10mm, Metal Oxide Varistor (MOV)
Stock Locations:
Availability:
3,275 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.37

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Epcos B722 StandarD series are round shaped radial leaded, SIOV metal oxide varistors. These varistors have wide operating voltage range from 11VRMS to 1100VRMS. B722 series varistors are used as control or compensation elements in circuits either to provide optimal operating conditions or to protect against excessive transient voltages. The voltage dependent characteristics enable these varistors to protect against high transient voltage spikes.
High surge current ratings up to 8KA
Peak energy range from 0.3J to 410J
UL, CSA, VDE, CQC (S05/07, S10/S14, S20), IEC approved
Operating temperature range -40°C to 85°C
Endurance of 1000h at 85°C
±10% and ±5% varistor voltage tolerance
UL94V-0 rated flame retardant and epoxy resin coated

Show

B72210S0400K101 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Voltage Rating (DC)	56 V
Voltage Rating (AC)	40 V
Capacitance	2100 pF
Capacitance Tolerance	10 %
Clamping Voltage	135 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (DC Max)	56 V
Voltage Rating (AC Max)	40 V
	Show
Size-Length	14.5 mm
Size-Height	14.5 mm
Lead Length	30 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
