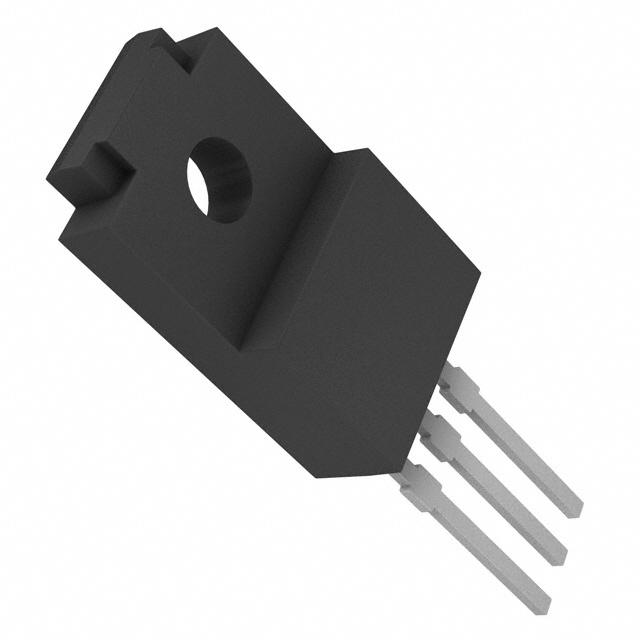

Image is for your reference only,please check specifications for details
- BA178M05T - ROHM Semiconductor
-
Manufacturer:ROHM Semiconductor
-
ManyChip's Part#:MC57976950
-
Category:Voltage Regulator
-
Package:TO-220-3
-
Datasheet:Datasheet 3D Model
-
Description:ROHM BA178M05T Linear Voltage Regulator, 7805, Fixed, 7.5V To 20V In, 5V And 0.5A Out, TO-220FP-3
-
Stock Locations:
-
Availability:10,474 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.2
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BA178MooT and BA178MooFP series are 3-pin, fixed positive output voltage regulators. These regulators are used to provide a stabilized output voltage from a fluctuating DC input voltage.
- There are 11 fixed output voltages, as follows : 5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, and 24V. The maximum current capacity is 0.5A for each of the above voltages.
- "Features
- 1) Built-in overcurrent protection circuit and thermal shutdown circuit.
- 2) Excellent ripple regulation.
- 3) Available in TO-220FP and TO252-3 packages, to meet wide range of applications.
- 4) Compatible with other manufacturers" regulators.
- 5) Richly diverse lineup. (5V, 6V, 7V, 8V, 9V, 10V, 12V, 15V, 18V, 20V, 24 V)
BA178M05T Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 20.0V (max) |
| Output Voltage | 5 V |
| Output Current | 500 mA |
| Number of Positions | 3 Position |
| Power Dissipation | 22000 mW |
| voltage rating | 2V @500mA |
| Input Voltage (Max) | 20 V |
| Input Voltage (Min) | 7.5 V |
| Output Current (Max) | 0.5 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 22000 mW |
| Input Voltage | 7.5V ~ 25V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 4.5 mm |
| Size-Height | 8 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
