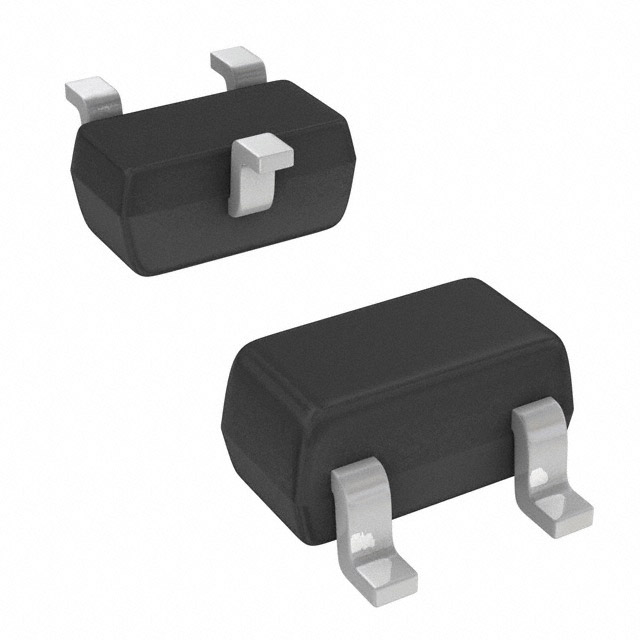

This Common Cathode Switching Diode is designed for use in ultra high speed switching applications. This device is housed in the SOT-416/SC-75 package, which is designed for low power surface mount applications, where board space is at a premium.
Features
---
|
Pb-Free Package May be Available. The G-Suffix Denotes a Pb-Free Lead Finish
NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECQ101 Qualified and PPAP Capable

Show

BAV70T Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	3 Pin
Case/Package	SOT-523
Forward Voltage	1 V
Reverse recovery time	4 ns
Max Repetitive Reverse Voltage (Vrrm)	100V
Forward Current	150 mA
Max Reverse Leakage Current (Ir)	5uA
Forward Current (Max)	150 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150 mW
	Show
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
