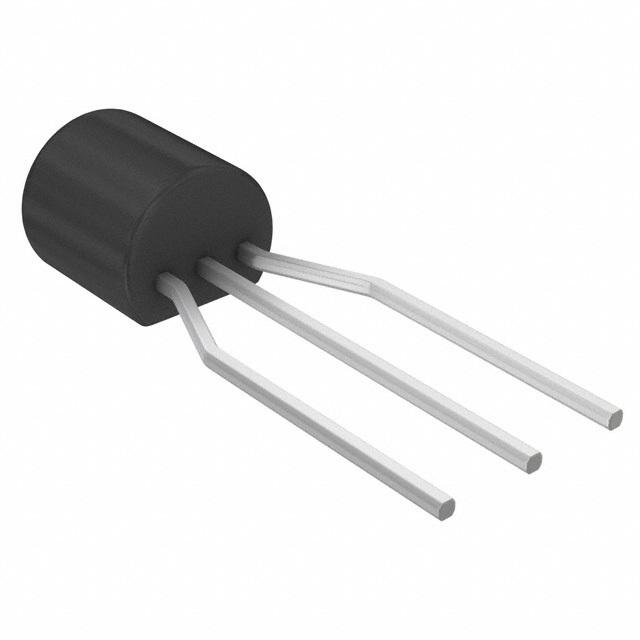

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Amplifier Transistors
- NPN Silicon
- Features
- • Pb−Free Packages are Available
BC548BRL1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-226-3 |
| Frequency | 300 MHz |
| Voltage Rating (DC) | 30.0 V |
| Current Rating | 100 mA |
| Number of Positions | 3 Position |
| Polarity | NPN |
| Power Dissipation | 1.5 W |
| Gain Bandwidth Product | 300 MHz |
| Breakdown Voltage (Collector to Emitter) | 30 V |
| Continuous Collector Current | 0.1A |
| hFE Min | 200 @2mA, 5V |
| Input Power (Max) | 625 mW |
| DC Current Gain (hFE) | 200 |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 625 mW |
| Show | |
| Size-Length | 5.2 mm |
| Size-Width | 4.19 mm |
| Size-Height | 5.33 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
