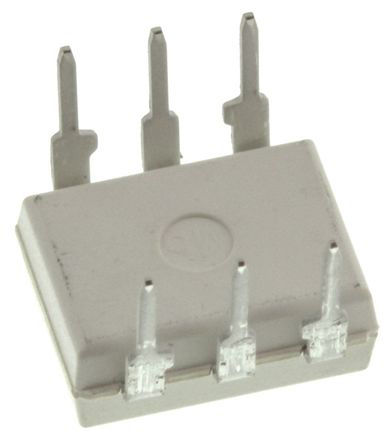

Image is for your reference only,please check specifications for details

MOC3042M - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC10696359
Category:
Optocoupler, Optoisolator
Package:
DIP-6
Datasheet:
Datasheet 3D Model
Description:
DIP6 Through Hole 1Channel 400V 4170Vrms Zero-Cross Triac Optoisolator
Stock Locations:
Availability:
9,450 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.42

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MOC3042-M is a 400V Zero Crossing TRIAC Driver Output Optocoupler consists of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use with a TRIAC in the interface of logic systems to equipment powered from 115VAC lines such as teletypewriters, CTRs, solid-state relays, printers and solenoids etc.
Simplifies logic control of 115VAC power
Zero voltage crossing
dv/dt of 2000V/µs Typical, 1000V/µs guaranteed
400V Peak blocking voltage

Show

MOC3042M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-6
Voltage Rating (DC)	400 V
Input Voltage (DC)	1.25 V
Output Voltage	400 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.25 V
Input Current	30.0 mA
Power Dissipation	0.25 W
Isolation Voltage	7.5 kV
Holding Current	400 µA
Forward Current	60 mA
Input Voltage (Max)	1.5 V
Output Voltage (Max)	280 VAC
Input Current (Min)	60 mA
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	60 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
Input Voltage	1.25 V
	Show
Size-Height	3.53 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
