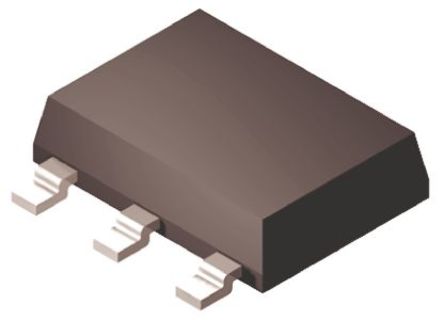

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BF720T1G is a NPN bipolar Small Signal Transistor designed for use as a general purpose amplifier and in switching applications. The device is housed in the package which is designed for medium power surface-mount applications.
AEC-Q101 qualified and PPAP capable

Show

BF720T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Frequency	60 MHz
Voltage Rating (DC)	300 V
Current Rating	100 mA
Number of Positions	4 Position
Polarity	NPN
Power Dissipation	1.5 W
Gain Bandwidth Product	60 MHz
Breakdown Voltage (Collector to Emitter)	300 V
Continuous Collector Current	0.1A
hFE Min	50 @25mA, 20V
Input Power (Max)	1.5 W
DC Current Gain (hFE)	50
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1.5 W
	Show
Size-Length	6.7 mm
Size-Width	3.7 mm
Size-Height	1.65 mm
Material	Silicon
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
