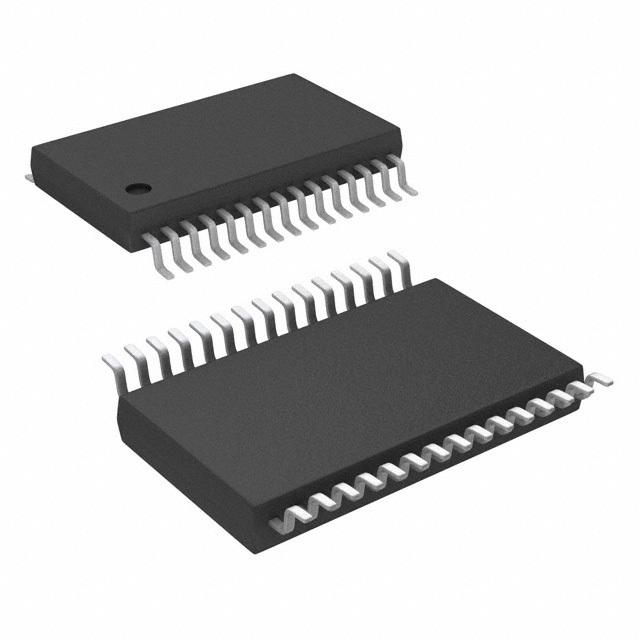

- BQ20Z90DBT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC61816455
-
Category:Battery Management IC
-
Package:TSSOP-30
-
Datasheet:Datasheet 3D Model
-
Description:SBS 1.1 Compliant Gas Gauge Enabled w/Impedance Track Tech For bq29330 30-TSSOP -40℃ to 85℃
-
Stock Locations:
-
Availability:219 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.65
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The bq20z90 SBS-compliant gas gauge IC, incorporating patented Impedance Track™ technology, is designed for battery-pack or in-system installation. The bq20z90 measures and maintains an accurate record of available charge in Li-ion or Li-polymer batteries using its integrated high-performance analog peripherals. The bq20z90 monitors capacity change, battery impedance, open-circuit voltage, and other critical parameters of the battery pack, and reports the information to the system host controller over a serial-communication bus. It is designed to work with the bq29330 analog front-end (AFE) protection IC to maximize functionality and safety, and minimize component count and cost in smart battery circuits.
- FEATURES
- • Patented Impedance Track™ Technology Accurately Measures Available Charge in Li-Ion and Li-Polymer Batteries
- • Better than 1% Error Over Lifetime of the Battery
- • Instant Accuracy – No Learning Cycle Required
- • Automatically adjusts for battery aging, battery self discharge and temperature inefficiencies
- • Supports the Smart Battery Specification SBS V1.1
- • Works With the TI bq29330 Analog Front-End (AFE) Protection IC to Provide Complete Pack Electronics Solution
- • Full Array of Programmable Voltage, Current, and Temperature Protection Features
- • Integrated Time Base Removes Need for External Crystal with Optional Crystal Input
- • Electronics for 7.2-V, 10.8-V or 14.4-V Battery Packs With 50% Fewer External Components
- • Based on a Powerful Low-Power RISC CPU Core With High-Performance Peripherals
- • Integrated Field Programmable FLASH Memory Eliminates the Need for External Configuration Memory
- • Measures Charge Flow Using a High-Resolution, 16-Bit Integrating Delta-Sigma Converter
- – Better Than 0.65 nVh of Resolution
- – Self-Calibrating
- • Uses 16-Bit Delta-Sigma Converter for Accurate Voltage and Temperature Measurements
- • Extensive Data Reporting Options For Improved System Interaction
- • Optional Pulse Charging Feature for Improved Charge Times
- • Drives 3-, 4- or 5-Segment LED Display for Remaining Capacity Indication
- • Supports SHA-1 Authentication
- • Lifetime Data Logging
- • 30-Pin TSSOP (DBT)
- APPLICATIONS
- • Notebook PCs
- • Medical and Test Equipment
- • Portable Instrumentation
BQ20Z90DBT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 30 Pin |
| Case/Package | TSSOP-30 |
| Supply Voltage (DC) | 2.40V (min) |
| Output Voltage | 2.00 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.5 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
