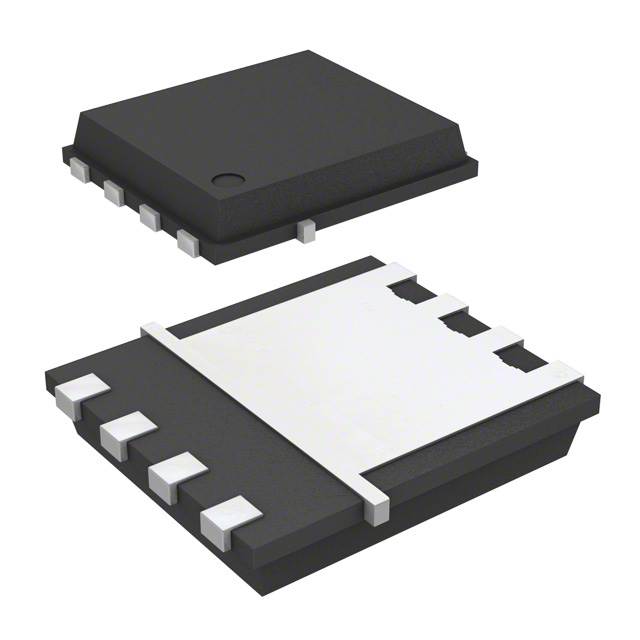

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Optimized for synchronous rectification
- 15% lower R DS(on) than alternative devices
- 31% improvement of FOM over similar devices
- Integrated Schottky-like diode
- RoHS compliant - halogen free
- MSL1 rated
- Benefits:
- Highest system efficiency
- Less paralleling required
- Increased power density
- System cost reduction
- Very low voltage overshoot
BSC010N04LSIATMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PG-TDSON-8 |
| Power Rating | 139 W |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Polarity | N-CH |
| Power Dissipation | 139 W |
| Threshold Voltage | 1.2 V |
| Drain to Source Voltage (Vds) | 40 V |
| Breakdown Voltage (Drain to Source) | 40 V |
| Continuous Drain Current (Ids) | 37A |
| Rise Time | 48 ns |
| Input Capacitance (Ciss) | 6200pF @20V(Vds) |
| Fall Time | 17 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2.5W (Ta), 139W (Tc) |
| Show | |
| Size-Length | 5.9 mm |
| Size-Width | 5.15 mm |
| Size-Height | 1.27 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status |
