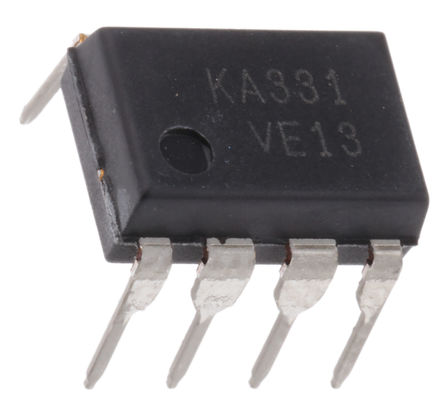

Image is for your reference only,please check specifications for details

KA331 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC7600200
Category:
Comparator, Analog Comparator IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR KA331 Voltage to Frequency Converter, 100kHz, 1Hz to 100kHz, 0.01%, 4.5V to 40V, DIP, 8Pins
Stock Locations:
Availability:
1,541 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.31

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The KA331 is a Voltage to Frequency Converter provides the output pulse train at a frequency precisely proportional to the applied input voltage. The KA331 can operate at power supplies as low as 4.0V and be changed output frequency from 1Hz to 100kHz. It is ideally suited for use in simple low-cost circuit for analogue-to digital conversion, long term integration, linear frequency modulation or demodulation, frequency-to-voltage conversion and many other functions. This product is general usage and suitable for many different applications.
Low power dissipation of 15mW at 5V
Pulse output compatible with all logic forms
100dB at 10kHz Minimum wide dynamic range

Show

KA331 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	100 kHz
Power Rating	15 mW
Output Voltage	0.40 VDC
Output Current	136 µA
Number of Positions	8 Position
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.5V ~ 40V
Supply Voltage (Max)	40 V
Supply Voltage (Min)	4 V
	Show
Size-Length	9.6 mm
Size-Width	6.4 mm
Size-Height	3.4 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
