Description
- Description
- The BTS 7700 G is part of the TrilithIC family containing three dies in one package:
- One double high-side switch and two low-side switches. The drains of these three vertical DMOS chips are mounted on separated leadframes. The sources are connected to individual pins, so the BTS 7700 G can be used in H-bridge- as well as in any other configuration. The double high-side is manufactured in SMART SIPMOS® technology which combines low RDS ON vertical DMOS power stages with CMOS control circuitry. The high-side switch is fully protected and contains the control and diagnosis circuitry. To achieve low RDS ON and fast switching performance, the low-side switches are manufactured in S-FET logic level technology. The equivalent standard product is the BUZ 104 SL.
- In contrast to the BTS 7710 G, which consists of lower ohmic chips in the same package, the BTS 7700 G offers a lower price for applications, which do not need the high current capability of the BTS 7710 G or BTS 7710 GP.
- 1.1 Features
- • Quad D-MOS switch driver
- • Free configurable as bridge or quad-switch
- • Optimized for DC motor management applications
- • Low RDS ON: 110 mτ high-side switch, 90 mτ low side switch (typical values @ 25°C)
- • Maximum peak current: typ. 9 A @ 25°C
- • Very low quiescent current: typ. 5 μA @ 25°C
- • Small outline, enhanced power P-DSO-package
- • Load and GND-short-circuit-protection
- • Operates up to 40 V
- • Status flag diagnosis
- • Overtemperature shut down with hysteresis
- • Internal clamp diodes
- • Isolated sources for external current sensing
- • Under-voltage detection with hysteresis
- • PWM frequencies up to 50 kHz

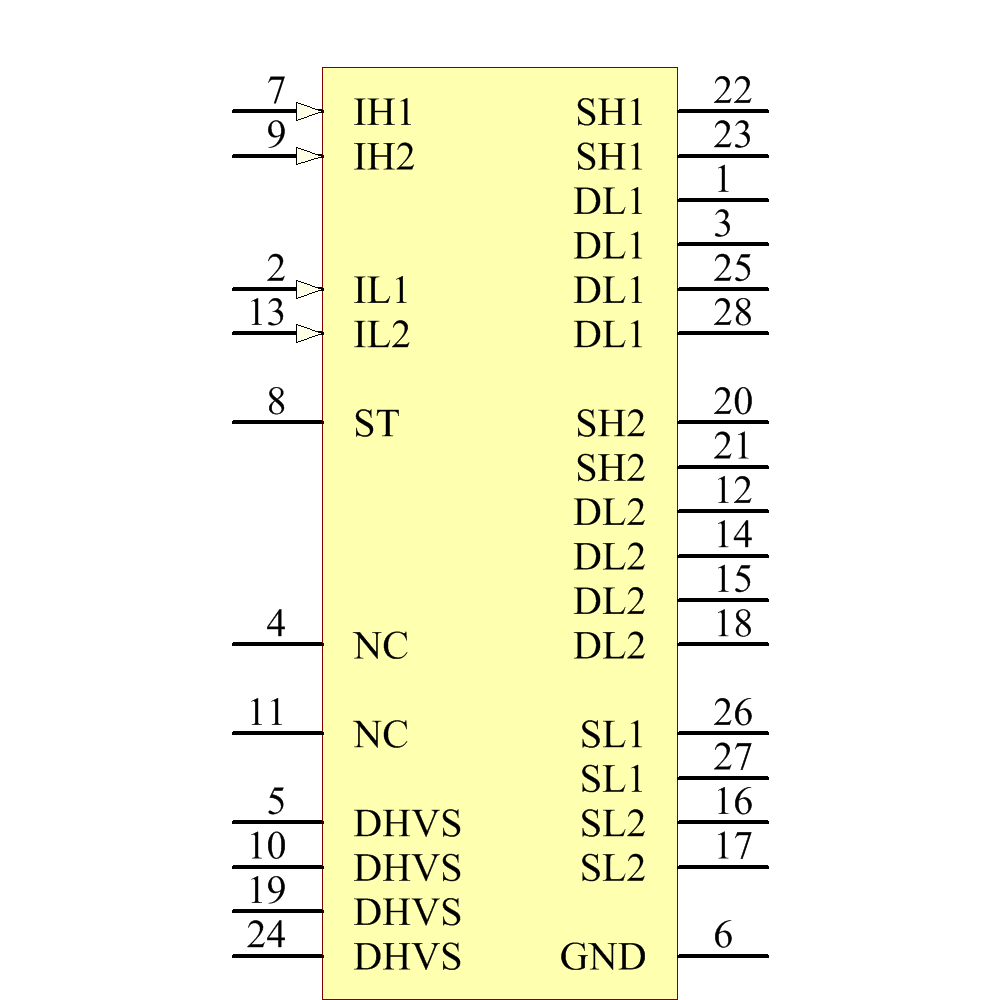

BTS7700G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | P-DSO-28 |
| Supply Current | 4 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Show | |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
