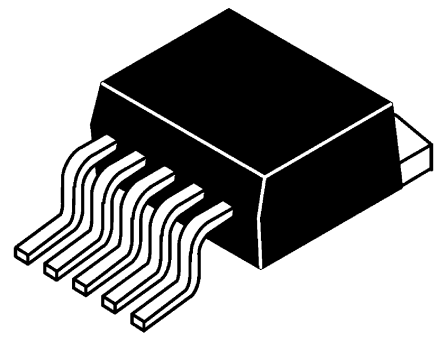

Image is for your reference only,please check specifications for details

BUF634FKTTT - TI
Manufacturer:
TI
ManyChip's Part#:
MC26899888
Category:
Operational Amplifier, OP Amp IC
Package:
TO-263-6
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS BUF634FKTTT Buffer Amplifier, 1 Amplifiers, 180MHz, 2000V/µs, ± 2.25V to ± 18V, TO-263, 5Pins
Stock Locations:
Availability:
326 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.71

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BUF634FKTTT is a high speed unity-gain Open-loop Buffer recommended for a wide range of applications. The BUF634 device can be used inside the feedback loop of op amps to increase output current, eliminate thermal feedback and improve capacitive load drive. For low power applications, the BUF634 device operates on 1.5mA quiescent current with 250mA output, 2000V/µs slew rate and 30MHz bandwidth. Bandwidth can be adjusted from 30 to 180MHz by connecting a resistor between V-and the BW pin. Output circuitry is fully protected by internal current limit and thermal shut-down, making it rugged and easy to use.
Internal current limit
Thermal shutdown protection
Continuous output short-circuit (to ground)
1.5mA Low quiescent current

Show

BUF634FKTTT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-6
Output Current	250 mA
Supply Current	15 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	5 Position
Bandwidth	180 MHz
Slew Rate	2.00 kV/μs
Gain Bandwidth Product	180 MHz
Input Offset Voltage	30 mV
Input Bias Current	5 µA
Available Channels	S
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	180 MHz
Gain Bandwidth	180 MHz
	Show
Size-Length	10.16 mm
Size-Width	8.42 mm
Size-Height	4.58 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
