Description

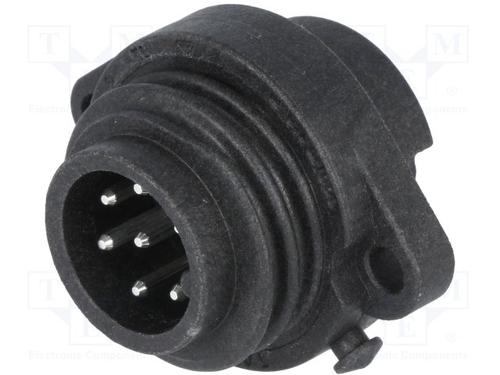

The C016 30C006 100 12 from Amphenol is an ecomate circular male receptacle connector with 6 + PE contacts. The ecomate series provide easy operation, reduced dimensions, robust design, quick and easy assembly. This connector"s main area of application is in the field of plant construction and machine building. It is used for measuring and controlling applications as well as for power supply technology. This ergonomically designed connectors are approved by UL E63093, CSA 48932, VDE 1781/1780, SEV 00.0394 standards and designed for safe handling.
Solder termination
Silver plated contacts
Rated voltage of 250V according to DIN EN 60664-1/IEC 60664-1 standard
Contact resistance is less than or equal to 5mohm according to DIN EN 60512-2/IEC 60512-2 (test 2a)
Current carrying capacity of 10A at 55°C according to DIN EN 60512-3/IEC 60512-2 (test 5b)
Operating temperature range from -40°C to 125°C
IP67/IP65 degree of protection in accordance with DIN EN 60529/IEC 60529 standard
Black colour polyamide (PA6/PA6.6) housing
Maximum wire gauge of 0.75mm²
UL94 V-0 flammability

Show

C016 30C006 100 12 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder, Panel
Number of Pins	7 Pin
Number of Contacts	6 Contact
Gender	Female
Wire Gauge	20.0 AWG
Contact Plating	Silver
Current Rating	12 A
Insulation Resistance	10 MΩ
Flammability Rating	UL 94 V-0
Number of Positions	7 Position
Contact Resistance	5 mΩ
Number of Mating Cycles	500 Cycle
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 V
	Show
Size-Length	32 mm
Size-Width	38 mm
Size-Height	29 mm
Color	Black
Contact Material	Copper Alloy
Insulation Material	Plastic
Operating Temperature	-40℃ ~ 125℃
Housing Material	Nylon 6/6
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
