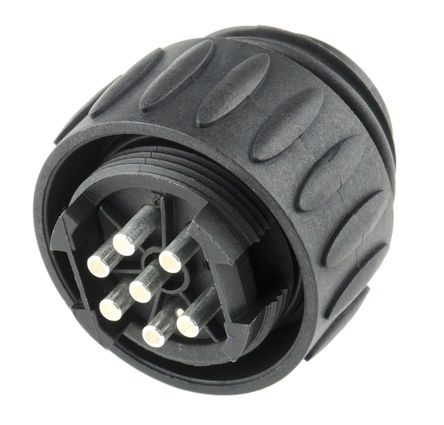

Image is for your reference only,please check specifications for details

C016 30H006 110 12 - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC12469143
Category:
Circular Connector, Connector Circular
Datasheet:
Datasheet 3D Model
Description:
Connector: circular; plug; with cable clamp; male; PIN:7; 250V; 10A
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The C016 30H006 110 12 is a 6 + PE-position male straight Cable Connector with silver-plated contacts and black backshell The C016 series cable connector with internal cable clamping and clamping ring. In design and conception the Ecomate program meets the high requirements for applications in industrial technology. It is suitable for 0.75mm² wire gauge.
Quick and easy assembly
Ergonomically designed product range for safe handling
Housing components made from premium moulding material
>=10⁸R Insulation resistance
* Protection class IP65/67 in mated condition in accordance with DIN EN 60526

Show

C016 30H006 110 12 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder
Number of Pins	7 Pin
Number of Contacts	7 Contact
Gender	Male
Contact Plating	Gold Flash over Silver
Current Rating	12 A
Orientation	Straight
Number of Positions	7 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 V
	Show
Size-Length	73 mm
Color	Black
Weight	40.80000 g
Operating Temperature	-40℃ ~ 125℃
Housing Material	Nylon 6/6
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
