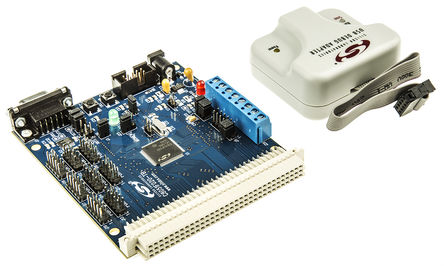

Image is for your reference only,please check specifications for details

C8051F020DK - Silicon Labs
Manufacturer:
Silicon Labs
ManyChip's Part#:
MC12062067
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
C8051F020/C8051F021/C8051F022/C8051F023 Microcontroller Development Kit 2MHz/22.1184MHz CPU Win 98 SE
Stock Locations:
Availability:
671 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 95.23

Updated at 20/03/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

C8051F020DK development kit is designed to develop applications with the C8051F020 microcontroller. This 8bit device are highly integrated mixed signal MCUs featuring two separate high speed ADC sub systems (12bit, 100Ksps). These devices also include two separate 12bit DACs. With on chip VDD monitor, Watchdog Timer and clock oscillator, the C8051F020 devices are truly stand alone System on a Chip solutions. All analog and digital peripherals are enabled/disabled and configured by user firmware. The FLASH memory can be reprogrammed even in circuit, providing non volatile data storage, and also allowing field upgrades of the 8051 firmware.
Pipelined instruction architecture, executes 70% of instructions in 1 or 2 system clocks
22 vectored interrupt sources
64 port I/O, all are 5V tolerant
On chip debug circuitry facilitates full speed, non intrusive in system debug (no emulator required)
Provides breakpoints, single stepping, watch point, stack monitor
Inspect/modify memory and registers
Superior performance to emulation systems using ICE chips, target pods, and sockets
IEEE1149.1 compliant boundary scan

Show
