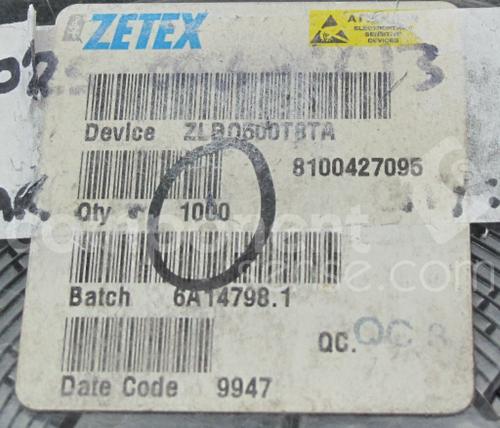

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Make a theoretical system actual by providing stable voltages with this LDO ZLDO500T8TA linear regulator from Diodes Zetex. This device has a maximum power dissipation of 2000 mW. Its typical dropout voltage at current is 0.006@10mA|0.03@100mA|0.1@300mA V. It has an overall accuracy of ±2.5 %. This voltage regulation device"s single output can produce a current up to 0.3 A. The best way to provide power to your application is by using this, which needs a voltage of at least -0.3 V and no higher than 20 V. With a fixed output that has a voltage of 5 V, this is power management at its best. A load regulation of 123mV and line regulation of 70mV is necessary for providing a constant voltage level at your output. Its maximum power dissipation is 2000 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its polarity is positive. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. The maximum dropout voltage is 0.01@10mA|0.075@100mA|0.2@300mA V.
ZLDO500T8TA Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOT-223-8 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 20.0V (max) |
| Output Voltage | 5 V |
| Output Current | 300 mA |
| Power Dissipation | 2 W |
| Quiescent Current | 1 mA |
| voltage rating | 0.1V @300mA |
| Input Voltage (Max) | 20 V |
| Output Voltage (Min) | 5 V |
| Output Current (Max) | 0.3 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2000 mW |
| Accuracy | ±2.5 % |
| Input Voltage | ≤20 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
