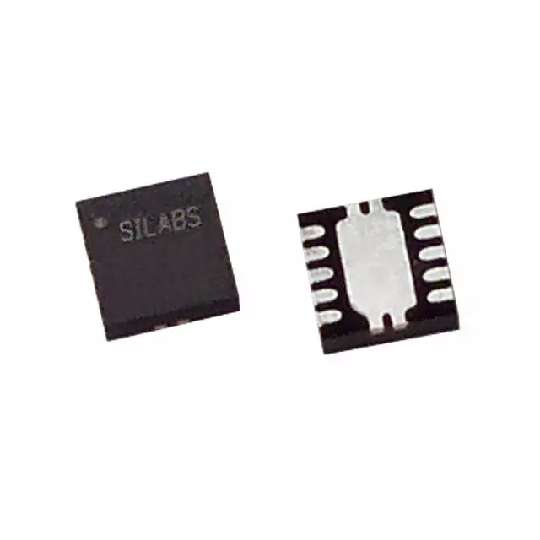

C8051F300 - Silicon Labs
Manufacturer:
Silicon Labs
ManyChip's Part#:
MC77270724
Category:
Microcontroller, MCU IC
Package:
QFN-10
Datasheet:
Datasheet 3D Model
Description:
MCU 8Bit C8051F30x 8051 CISC 8KB Flash 3V 11Pin QFN EP
Stock Locations:
Availability:
248 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

System Overview
C8051F300/1/2/3/4/5 devices are fully integrated mixed-signal system-on-a-chip MCUs. Highlighted features are listed below. Refer to Table 1.1 on page 14for specific product feature selection.
• High-speed pipelined 8051-compatible microcontroller core (up to 25 MIPS)
• In-system, full-speed, non-intrusive debug interface (on-chip)
• True 8-bit 500 ksps 11-channel ADC with programmable gain pre-amplifier and analog multiplexer
(C8051F300/2 only)
• Precision programmable 25 MHz internal oscillator
•Up to 8 kB of on-chip Flash memory
• 256 bytes of on-chip RAM
•SMBus/I2C and Enhanced UART serial interfaces implemented in hardware
• Three general-purpose 16-bit timers
• Programmable counter/timer array (PCA) with three capture/compare modules and watchdog timer
function
• On-chip power-on reset, VDDmonitor, and temperature sensor
• On-chip voltage comparator
• Byte-wide I/O port (5 V tolerant)
Analog Peripherals
\- 8-Bit ADC ("F300/2 only)
• Up to 500 ksps
• Up to 8 external inputs
• Programmable amplifier gains of 4, 2, 1, & 0.5
• VREF from external pin or VDD
• Built-in temperature sensor
• External conversion start input
\- Comparator
• Programmable hysteresis and response time
• Configurable as interrupt or reset source
• Low current (<0.5 µA)
On-chip Debug
\- On-chip debug circuitry facilitates full speed, non-intrusive in-system debug (no emulator required)
\- Provides breakpoints, single stepping, inspect/modify memory and registers
\- Superior performance to emulation systems using ICE-chips, target pods, and sockets
\- Complete development kit
Supply Voltage 2.7 to 3.6 V
\- Typical operating current: 6.6 mA @ 25 MHz; 14 µA @ 32 kHz
\- Typical stop mode current: 0.1 µA
\- Temperature range: –40 to +85 °C
High Speed 8051 µc Core
\- Pipelined instruction architecture; executes 70% of instructions in 1 or 2 system clocks
\- Up to 25 MIPS throughput with 25 MHz clock
\- Expanded interrupt handler
Memory
\- 256 bytes internal data RAM
\- Up to 8 kB (‘F300/1/2/3), 4 kB (‘F304), or 2 kB (‘F305) Flash; 512 bytes are reserved in the 8 kB devices
Digital Peripherals
\- 8 Port I/O; All 5 V tolerant with high sink current
\- Hardware enhanced UART and SMBus™ serial ports
\- Three general-purpose 16-bit counter/timers
\- 16-bit programmable counter array (PCA) with three capture/compare modules
\- Real time clock mode using PCA or timer and external clock source
Clock Sources
\- Internal oscillator: 24.5 MHz with ±2% accuracy supports UART operation
\- External oscillator: Crystal, RC, C, or clock (1 or 2 pin modes)
\- Can switch between clock sources on-the-fly; Useful in power saving modes
11-Pin Quad Flat No-Lead (QFN) RoHS Package
\- 3 x 3 mm PWB footprint

Show

C8051F300 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	11 Pin
Case/Package	QFN-10
Supply Voltage (DC)	3.30 V, 3.60 V (max)
Clock Speed	25.0MHz (max)
RAM Memory Size	256 x 8
Number of I/O Pins	8 IO
Access Time	25.0 µs
Core Architecture	8051
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	40 ℃
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.88 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
HK STC License	NLR
