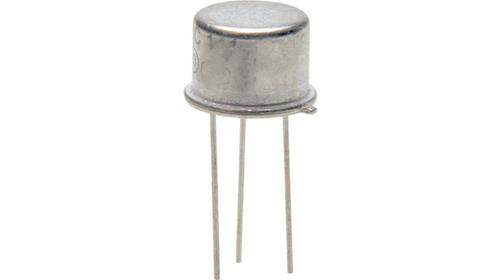

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The LT®1031 is a precision 10V reference with ultralow drift and noise, extremely good long term stability, and almost total immunity to input voltage variations. The reference output will both source and sink up to 10mA and can be used as a shunt regulator (two terminal Zener) with the same precision characteristics as the three terminal connection. Special care has been taken to minimize thermal regulation effects and temperature induced hysteresis.
- FEATURES
- Pin Compatible with LH0070 and AD581
- Ultralow Drift—5ppm/°C Max Slope
- Trimmed Output Voltage
- Operates in Series or Shunt Mode
- Output Sinks and Sources in Series Mode
- Very Low Noise < 1ppmP-P0.1Hz to 10Hz
- > 100dB Ripple Rejection
- Minimum Input Voltage of 11V
- APPLICATIONS
- A-to-D and D-to-A Converters
- Precision Regulators
- Digital Voltmeters
- lnertial Navigation Systems
- Precision Scales
- Portable Reference Standard
LT1031DCH Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-39 |
| Capacitance Tolerance | ±0.2 % |
| Input Voltage (DC) | 40.0V (max) |
| Output Voltage | 10 V |
| Output Current | 10 mA |
| Number of Channels | 1 Channel |
| Quiescent Current | 1.70 µA |
| Input Voltage (Max) | 40 V |
| Output Current (Max) | 10 mA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Accuracy | ±0.2 % |
| Input Voltage | ≤40 V |
| Show | |
| Temperature Coefficient | ±25 ppm/℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
