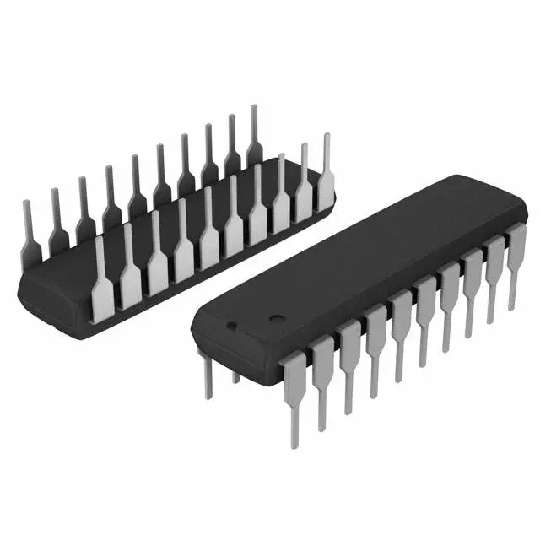

Image is for your reference only,please check specifications for details
- C8051F330D - Silicon Labs
-
Manufacturer:Silicon Labs
-
ManyChip's Part#:MC143167597
-
Category:Microcontroller, MCU IC
-
Package:DIP-20
-
Datasheet:Datasheet 3D Model
-
Description:MCU 8Bit 8051 CISC 8KB Flash 3.3V 20Pin PDIP
-
Stock Locations:
-
Availability:9,955 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.52
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- System Overview
- C8051F330/1/2/3/4/5 devices are fully integrated mixed-signal System-on-a-Chip MCUs. Highlighted features are listed below. Refer to Table 1.1 for specific product feature selection.
- • High-speed pipelined 8051-compatible microcontroller core (up to 25 MIPS)
- • In-system, full-speed, non-intrusive debug interface (on-chip)
- • True 10-bit 200 ksps 16-channel single-ended/differential ADC with analog multiplexer
- • 10-bit Current Output DAC
- • Precision programmable 25 MHz internal oscillator
- • Up to 8 kB of on-chip Flash memory—512 bytes are reserved
- • 768 bytes of on-chip RAM
- • SMBus/I2C, Enhanced UART, and Enhanced SPI serial interfaces implemented in hardware
- • Four general-purpose 16-bit timers
- • Programmable Counter/Timer Array (PCA) with three capture/compare modules and Watchdog Timer function
- • On-chip Power-On Reset, VDD Monitor, and Temperature Sensor
- • On-chip Voltage Comparator
- • 17 Port I/O (5 V tolerant)
- Analog Peripherals
- - 10-Bit ADC (‘F330/2/4 only)
- • Up to 200 ksps
- • Up to 16 external single-ended or differential inputs
- • VREF from internal VREF, external pin or VDD
- • Internal or external start of conversion source
- • Built-in temperature sensor
- - 10-Bit Current Output DAC (‘F330 only)
- - Comparator
- • Programmable hysteresis and response time
- • Configurable as interrupt or reset source
- • Low current (0.4 µA)
- On-Chip Debug
- - On-chip debug circuitry facilitates full speed, nonintrusive in-system debug (no emulator required)
- - Provides breakpoints, single stepping, inspect/modify memory and registers
- - Superior performance to emulation systems using ICE-chips, target pods, and sockets
- - Low cost, complete development kit
- Supply Voltage 2.7 to 3.6 V
- - Typical operating current: 6.4 mA at 25 MHz;
- 9 µA at 32 kHz
- - Typical stop mode current: 0.1 µA
- Temperature Range: –40 to +85 °C
- High Speed 8051 µC Core
- - Pipelined instruction architecture; executes 70% of instructions in 1 or 2 system clocks
- - Up to 25 MIPS throughput with 25 MHz clock
- - Expanded interrupt handler Memory
- - 768 bytes internal data RAM (256 + 512)
- - 8 kB (‘F330/1), 4 kB (‘F332/3), or 2 kB (‘F334/5) Flash; In-system programmable in 512-byte Sectors—512 bytes are reserved in the 8 kB devices
- Digital Peripherals
- - 17 Port I/O; All 5 V tolerant with high sink current
- - Hardware enhanced UART, SMBus™, and enhanced SPI™ serial ports
- - Four general purpose 16-bit counter/timers
- - 16-Bit programmable counter array (PCA) with three capture/compare modules
- - Real time clock mode using PCA or timer and external clock source
- Clock Sources
- - Two internal oscillators:
- • 24.5 MHz with ±2% accuracy supports crystal-less UART operation
- • 80/40/20/10 kHz low frequency, low power
- - External oscillator: Crystal, RC, C, or clock (1 or 2 pin modes)
- - Can switch between clock sources on-the-fly; useful in power saving modes
- 20-Pin QFN Package
C8051F330D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 20 Pin |
| Case/Package | DIP-20 |
| Supply Voltage (DC) | 3.30 V, 3.60 V (max) |
| Clock Speed | 25.0MHz (max) |
| RAM Memory Size | 768 x 8 |
| Number of I/O Pins | 17 IO |
| Access Time | 25.0 µs |
| Core Architecture | 8051 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 26.16 mm |
| Size-Width | 6.35 mm |
| Size-Height | 3.3 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Obsolete |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
