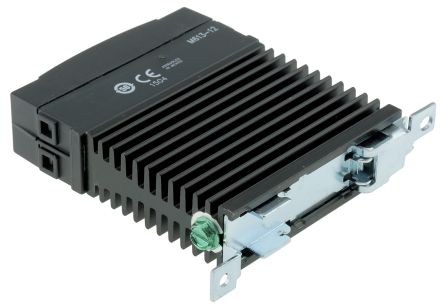

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Ratings from 10A to 30A @ 280 VAC
- * Slim 22.5mm (width) package
- * SCR output for heavy industrial loads
- * LED input status indicator
- * AC or DC control
- * Zero-crossing (resistive loads) or random-fire (inductive loads) output
CKRD2420 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail, DIN Panel |
| Number of Pins | 4 Pin |
| Case/Package | SSR with Integrated Heat Sink |
| Supply Voltage (DC) | 4.50V (min) |
| Current Rating | 20 A |
| Output Voltage | 24V ~ 280V |
| Output Current | 20000 mA |
| Contacts Type | SPST-NO |
| Load Current | 20 A |
| Input Current | 12 mA |
| Isolation Voltage | 4000 v |
| Input Voltage (Max) | 32 V |
| Input Voltage (Min) | 4 V |
| Output Voltage (Max) | 280 V |
| Input Current (Min) | 12 mA |
| Load Current (Max) | 20 Arms |
| Load Current (Min) | 0.15 A |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 280 VAC |
| Operating Voltage (Min) | 24 Vrms |
| Operating Voltage (Max) | 280 Vrms |
| Input Voltage | 32 V |
| Show | |
| Size-Length | 81.9 mm |
| Size-Width | 22.5 mm |
| Size-Height | 99 mm |
| Operating Temperature | -40℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
