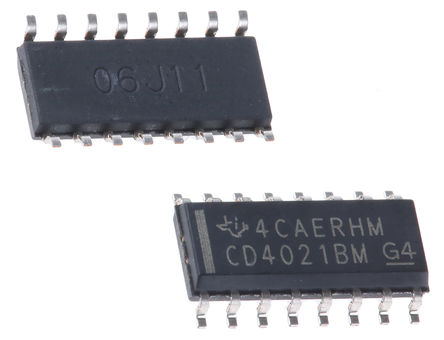

Image is for your reference only,please check specifications for details

CD4021BM - TI
Manufacturer:
TI
ManyChip's Part#:
MC6899433
Category:
Shift Register IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS CD4021BM Shift Register, CD4021, Parallel to Serial, Serial to Serial, 1Element, 8Bit, SOIC, 16Pins
Stock Locations:
Availability:
238 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.38

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CD4021BM is a 8-stage CMOS Static Shift Register having common clock and parallel/serial control inputs. Also it has a single serial data input and individual parallel "JAM" inputs to each register stage. Each register stage is D-type, master-slave flip-flop. In addition to an output form stage 8, "Q" outputs are also available from stages 6 and 7. In the CD4021B serial entry is synchronous with the clock by parallel entry is asynchronous. In both types, entry is controlled by the parallel/serial control input. When the parallel/serial control input is low, data is serially shifted into the 8-stage register synchronously with the positive transition of the clock line. When the parallel/serial control input is high, data is jammed into the 8-stage register via the parallel input lines and synchronous with the positive transition of the clock line. In the CD4021B, the clock input of the internal stage is "forced" when asynchronous parallel entry is made.
Fully static operation
100% Tested for quiescent current at 20V
Standardized, symmetrical output characteristics
Green product and no Sb/Br

Show

CD4021BM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Frequency	17 MHz
Supply Voltage (DC)	15.0 V, 18.0 V (max)
Number of Outputs	3 Output
Number of Circuits	1 Circuit
Number of Channels	8 Channel
Number of Positions	16 Position
Number of Bits	8 Bit
Voltage Nodes	5.00 V, 10.0 V, 15.0 V
Number of Inputs	9 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	3V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	3 V
	Show
Size-Length	9.9 mm
Size-Width	3.91 mm
Size-Height	1.58 mm
Weight	0.0022670548152 kg
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
