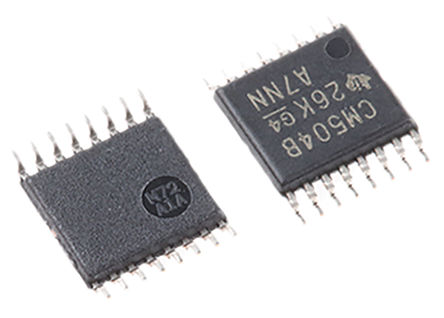

CD4504BPWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC1548933
Category:
Voltage Level Translator IC
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS CD4504BPWR Voltage Level Translator, 6Input, 6.8mA, 140ns, 5V to 20V, TSSOP-16
Stock Locations:
Availability:
9,012 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.38

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Texas Instruments CD4504BPWR level translator can control and allow the proper input voltage into your electronic circuits. This level shifter has a minimum operating temperature of -55 °C and a maximum of 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 9|12|15 V. Its minimum operating supply voltage of 5 V, while its maximum is 18 V.

Show

CD4504BPWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Voltage (DC)	15.0 V, 18.0 V (max)
Output Current	6.8 mA
Number of Circuits	1 Circuit
Number of Channels	6 Channel
Number of Positions	16 Position
Number of Bits	6 Bit
Propagation Delay Max (tpd)	2.90 ns
Number of Inputs	6 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Number of Output Channels	1 Channel
Supply Voltage	5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	5 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-55℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
