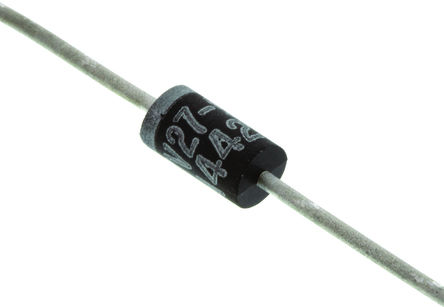

Image is for your reference only,please check specifications for details

STTH112RL - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC41884596
Category:
TVS Diode
Package:
DO-41
Datasheet:
Datasheet 3D Model
Description:
STTH112 Series 1200V 1A 75ns Through Hole Ultrafast Rectifier - DO-41
Stock Locations:
Availability:
5,555 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.16

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

STTH112RL Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-41
Voltage Rating (DC)	1.20 kV
Current Rating	1.00 A
Output Current	≤1.00 A
Forward Voltage	1.9V @1A
Polarity	Standard
Thermal Resistance	110 ℃/W
Reverse recovery time	75 ns
Forward Current	1000 mA
Max Forward Surge Current (Ifsm)	20 A
Forward Current (Max)	1 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-50 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	5.2 mm
Operating Temperature	-50℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
