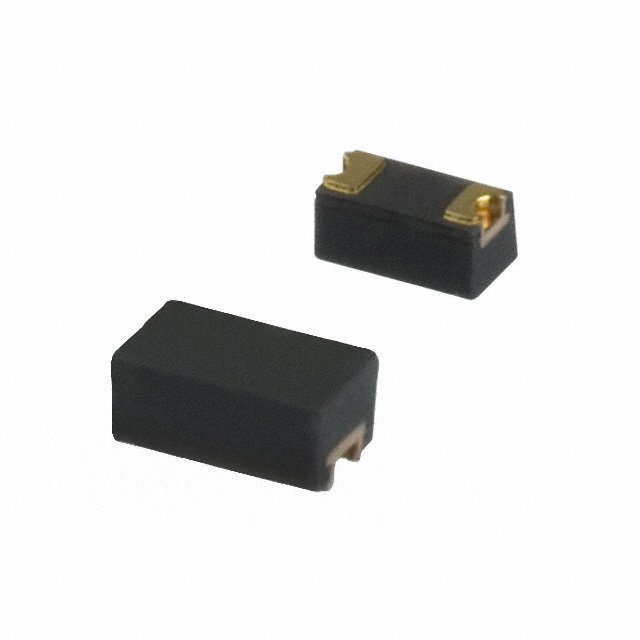

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Zener Diode 3V 150mW ±5% Surface Mount 0603/SOD-523F
CZRU52C3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 1608 |
| Case/Package | SMD-523 |
| Voltage Rating (DC) | 3.00 V |
| Capacitance Tolerance | ±5 % |
| Power Rating | 150 mW |
| Output Current | ≤500 mA |
| Forward Voltage | 900mV @10mA |
| Power Dissipation | 150 mW |
| Test Current | 5 mA |
| Zener Voltage | 3 V |
| Maximum Forward Voltage (Max) | 900mV @10mA |
| Input Power (Max) | 150 mW |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 1 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
