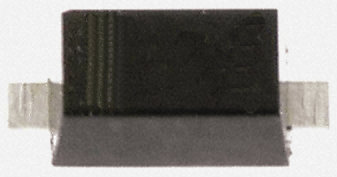

Image is for your reference only,please check specifications for details

DB2141300L - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC38841067
Category:
Schottky Diode
Package:
SMini2-F4-B
Datasheet:
Datasheet 3D Model
Description:
DB2141300L, SMT Schottky Switching Diode, 40V 2A, 12ns, 2Pin SMini2 F4 B B
Stock Locations:
Availability:
1,948 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.26

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DB2141300L is a silicon epitaxial planar Schottky Barrier Diode for rectification application.
Low forward voltage and small reverse leakage current
Average forward current
Halogen-free
UL94V-0 Flammability rating
Moisture sensitivity level 1

Show

DB2141300L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMini2-F4-B
Forward Voltage	530mV @2A
Reverse recovery time	12 ns
Forward Current	2 A
Max Forward Surge Current (Ifsm)	30 A
Maximum Forward Voltage (Max)	530 mV
Forward Current (Max)	2 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	40 ℃
Junction Temperature	150℃ (Max)
	Show
Size-Length	1.9 mm
Size-Width	1.25 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
