Description

DESCRIPTION
The DCP01B series is a family of 1W, unregulated, isolated DC/DC converters. Requiring a minimum of external components and including on-chip device protection, the DCP01B series provides extra features such as output disable and synchronization of switching frequencies.
FEATURES
Up To 85% Efficiency
Thermal Protection
Device-to-Device Synchronization
Short-Circuit Protection
EN55022 Class B EMC Performance
UL1950 Recognized Component
JEDEC DIP-14 and SOP-14 Packages
APPLICATIONS
Point-of-Use Power Conversion
Ground Loop Elimination
Data Acquisition
Industrial Control and Instrumentation
Test Equipment

Show

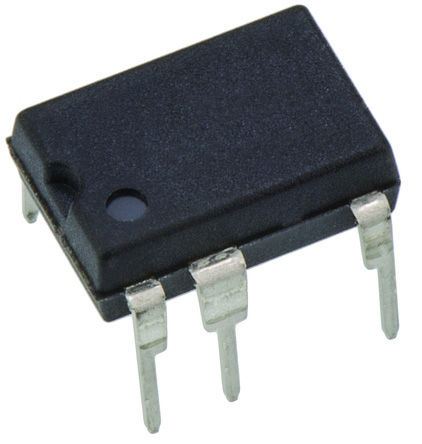

DCP010512BP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	7 Pin
Case/Package	DIP-14
Frequency	800 kHz
Power Rating	1 W
Number of Outputs	1 Output
Output Voltage	12 V
Output Current	83 mA
Number of Positions	14 Position
Quiescent Current	29.0 mA
Number of Regulated Outputs	1 Output
Output Power	1.00 W
Isolation Voltage	1 kV
Switching Frequency	800 kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Output Current (Max)	83 mA
Input Power (Max)	0.97 W
Input Power (Max)	348 mW
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	4.5V ~ 5.5V
	Show
Size-Length	19.18 mm
Size-Width	6.61 mm
Size-Height	3.94 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
