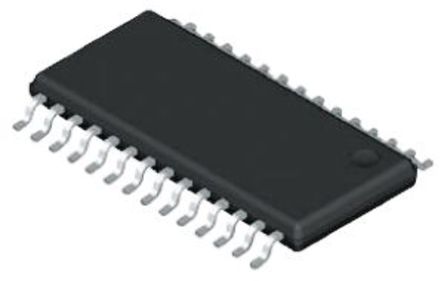

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DIT4096IPW is a Digital Audio Transmitter designed for use in professional and many applications. Transmit data rates up to 96kHz are supported. The DIT4096 supports both software and hardware operation, which makes it suitable for applications with or without a microcontroller. A flexible serial audio interface is provided, supporting standard audio data formats and easy interfacing to audio DSP serial ports.
CRC code generation for professional mode
Supports mono-mode operation
On-chip differential line driver
Flexible audio serial interface - Master or slave mode operation
Supports I²S, left-justified and right-justified data formats
Software mode via serial control interface - Block sized buffer for channel status data
Auto increment mode for block sized write and read operations
Hardware mode allows operation without a microcontroller
Compliant with AES-3, IEC-60958 and EIAJ CP1201 interface standards
Green product and no Sb/Br

Show

DIT4096IPW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	TSSOP-28
Supply Voltage (DC)	5.00 V
Supply Current	22.0 mA
Number of Channels	1 Channel
Number of Positions	28 Position
Data Rate	6.00 Mbps
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	9.7 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
