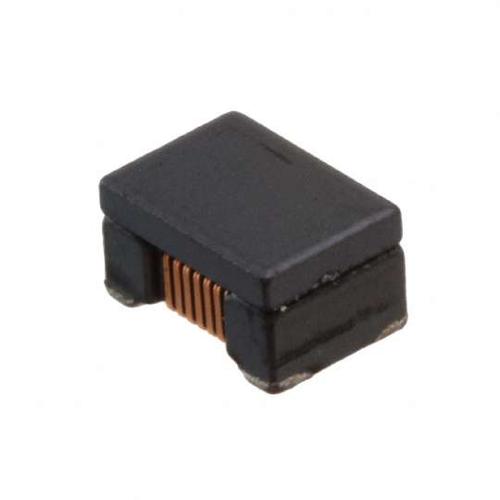

Image is for your reference only,please check specifications for details
- DLW43SH110XK2L - muRata
-
Manufacturer:muRata
-
ManyChip's Part#:MC15235604
-
Category:Inductor Choke
-
Package:1812
-
Datasheet:Datasheet 3D Model
-
Description:Ind Common Mode Choke Shielded Wirewound 11uH 11Ω -30 to 50% 100kHz 360mA 1812 Embossed T/R
-
Stock Locations:
-
Availability:95 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.24
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 11µH @ 100kHz 2 Line Common Mode Choke Surface Mount 360mA DCR 500mOhm
DLW43SH110XK2L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package (SI) | 4532 |
| Case/Package | 1812 |
| Voltage Rating (DC) | 50 V |
| Current Rating | 360 mA |
| Inductance | 11 µH |
| Test Frequency | 100 MHz |
| Current Rating (Max) | 360 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 50 VDC |
| Resistance (DC Max) | 500 mΩ |
| Show | |
| Size-Length | 4.5 mm |
| Size-Width | 3.2 mm |
| Size-Height | 2.6 mm |
| Weight | 0.17 g |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
