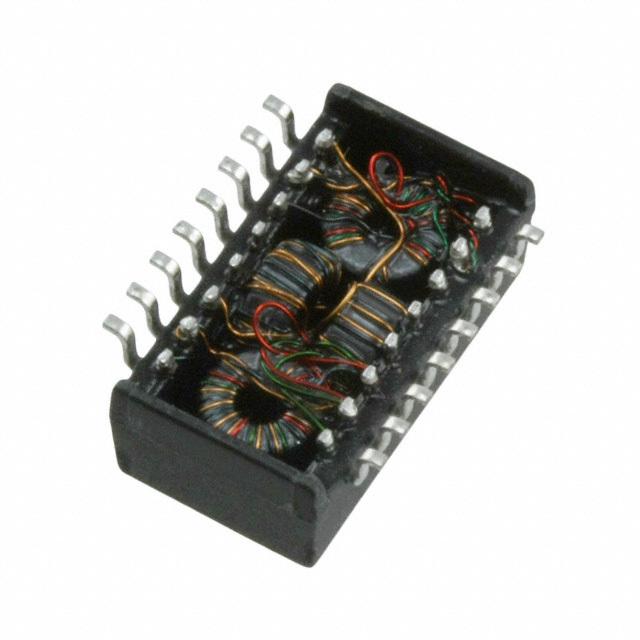

Image is for your reference only,please check specifications for details
- E2023NL - Pulse Electronics
-
Manufacturer:Pulse Electronics
-
ManyChip's Part#:MC20371993
-
Category:Transformer
-
Package:DIP-16
-
Datasheet:Datasheet 3D Model
-
Description:Audio Transformers / Signal Transformers 10Base-T SMD NonPoE 200uH 0.4Ω 1Port
-
Stock Locations:
-
Availability:4,108 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.38
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- E2023NL is manufactured by Pulse Electronics and is categorized in the Pulse Transformers category. E2023NL is described as XFRMR LAN ISOL 10BASET 1:2.5 SMD. Perfect Parts is a supplier of Transformers and other Miscellaneous.
E2023NL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | DIP-16 |
| Number of Channels | 1 Channel |
| Inductance | 200 μH |
| Isolation Voltage | 2 kV |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Resistance (DC Max) | 400 mΩ |
| Show | |
| Size-Length | 12.7 mm |
| Size-Width | 7.24 mm |
| Size-Height | 5.08 mm |
| Weight | 0.85 g |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
